Knowledge Box Configuration

Overview

The ai12z Knowledge Box is a versatile web control that delivers AI-generated answers and content directly on your web pages. It supports multiple configurations per agent, allowing you to customize the appearance, behavior, and functionality for different use cases.

Why Use the Knowledge Box?

The Knowledge Box excels in three primary scenarios:

1. AI Overview for Search Enhancement

Supplement your existing search functionality with AI-generated summaries that appear above traditional search results. When users submit a search query, the Knowledge Box provides instant, contextual answers while your regular search results load below.

Example: A user searches for "how to clean ski boots" - the Knowledge Box displays a concise AI-generated answer at the top, followed by your standard search results.

2. Dynamic Content Replacement

Start with static placeholder content that gets replaced dynamically based on user interactions.

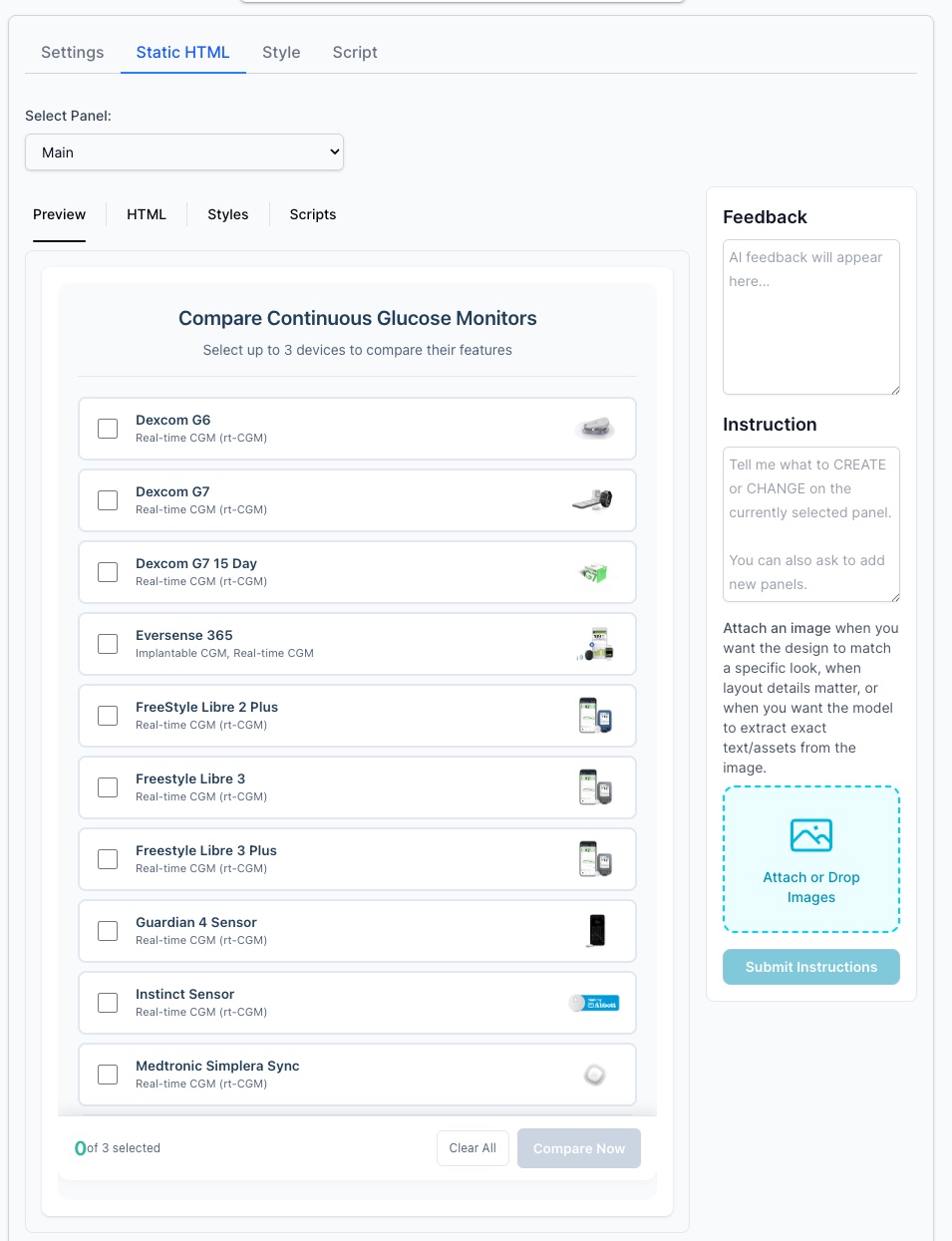

3. Comparison

As a comparison tools, product selectors, or interactive guides.

Example: Display a static panel that says "Select products to compare" with product thumbnails. When users click "Compare," JavaScript opens the cta control or bot control where AI results are shown and user can further ask question.

compare

4. Contextual Q&A Within Pages

Embed question prompts throughout your content that trigger AI answers when clicked. This creates an interactive experience where users can get detailed explanations without leaving the page.

Example: A product page includes a link "How do I choose the right size?" - clicking it triggers the Knowledge Box to display a personalized sizing guide.

Each configuration can be independently managed and applied to specific Knowledge Box instances using a unique Config ID.

Managing Configurations

List of Configuration

Navigate to your agent's Knowledge Box configuration page where you can view and manage all available configurations. Each configuration includes:

Name: A descriptive identifier for the configuration
Config ID: A unique identifier used to reference this configuration - used with config-id in the tag
Description: A brief explanation of the configuration's purpose
Modified Date: When the configuration was last updated
Default Status: One configuration can be marked as the default
Action: Edit or Preview

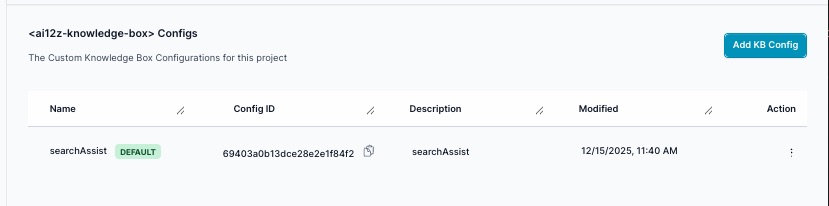

kb configuration

Using a Configuration

When you have multiple configurations, specify which one to use by adding the config-id attribute to the Knowledge Box tag. If no config-id is specified, the default configuration will be used.

<!-- Using a specific configuration -->
<ai12z-knowledge-box data-key="<API_KEY>" config-id="69403a0b13dce28e2e1f84f2">
</ai12z-knowledge-box>

<!-- Using the default configuration -->
<ai12z-knowledge-box data-key="<API_KEY>"></ai12z-knowledge-box>

Configuration Tabs

Each configuration consists of four main tabs: Settings, Static HTML, Style, and Script. These tabs allow you to control different aspects of the Knowledge Box behavior and appearance.

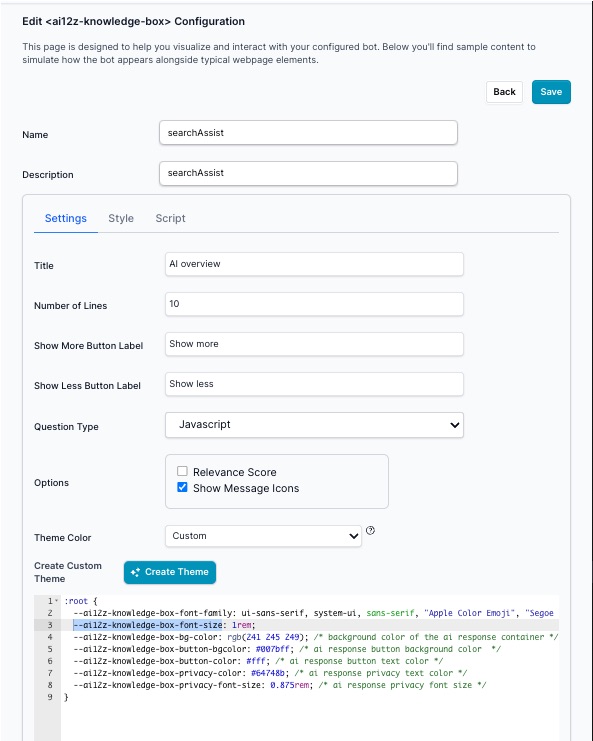

Settings Tab

The Settings tab controls the core functionality and appearance of your Knowledge Box.

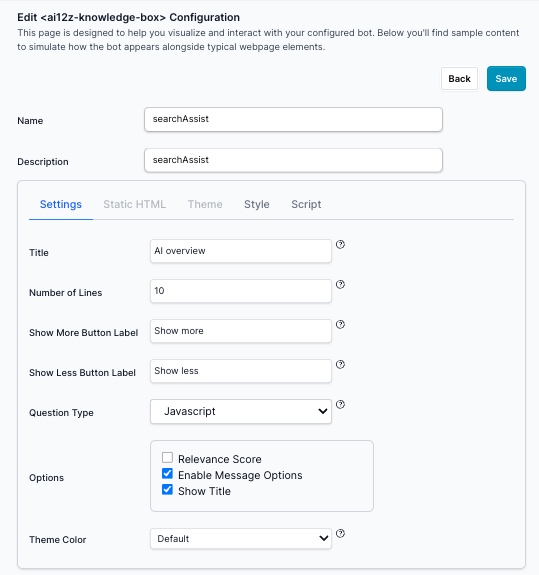

kb settings

Basic Settings

Setting	Description	Example
Title	The heading displayed above the Knowledge Box content	"AI overview", "Smart Answers", etc.
Number of Lines	Controls how many lines of content are visible before the "Show More" button appears	Default: 10
Show More Button Label	Text displayed on the button to expand content	"Show more", "Read more", "See full answer"
Show Less Button Label	Text displayed on the button to collapse content	"Show less", "Collapse", "Hide details"

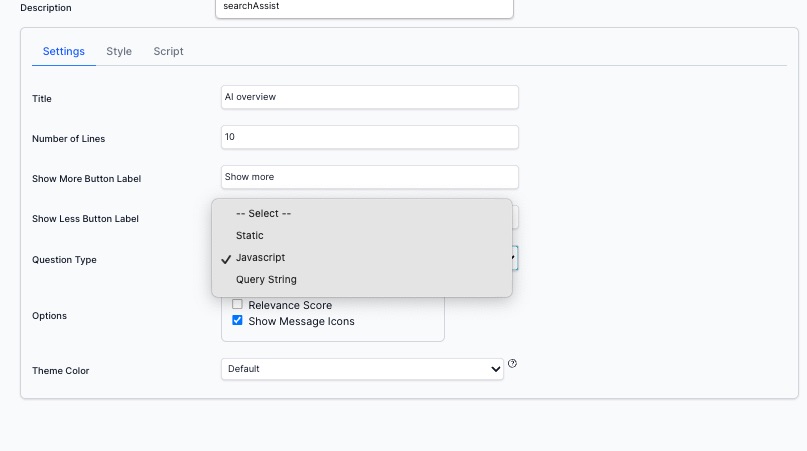

Question Type

The Question Type setting determines how questions are passed to the Knowledge Box. There are three options:

kb question type

1. Static Query

With Static mode, you can define a default question that loads automatically when the page loads. Users can still submit new questions via JavaScript or by interacting with the Knowledge Box.

kb static question

Use Case: Pre-populate a common question or show a default answer when the page loads. The first user the LLM will generate the answer, after that the answer will come from cache, so it will render quickly.

2. JavaScript

JavaScript mode requires you to programmatically set the question using JavaScript. The Knowledge Box will not display content until a question is provided via code.

Use Case: Integrate with your existing search functionality or trigger questions based on user interactions.

const knowledgeBox = document.querySelector("ai12z-knowledge-box")
knowledgeBox.setAttribute("question", "What are the best ski boots?")

3. Query String

Query String mode automatically reads the question from the URL parameter kbquery. This is useful for deep linking or sharing specific Knowledge Box queries.

Use Case: Enable bookmarkable or shareable Knowledge Box results.

Example URL: https://yoursite.com/search?kbquery=what+are+ski+boot+sizes

The Knowledge Box will automatically detect and load the question from the URL.

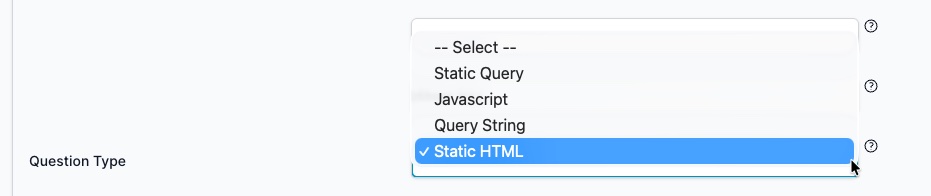

4. Static HTML

Static HTML mode provides a visual coding experience to create custom multi-panel layouts. With this mode:

The Knowledge Box displays pre-designed content immediately on page load
Content can be updated dynamically via JavaScript
All assets (HTML, CSS, and scripts) are delivered from the CDN for optimal performance
Has its own dedicated Static HTML, Style, and Script tabs for complete customization

Use Case: Create rich, multi-panel experiences like featured content sections, interactive guides, or branded landing page elements.

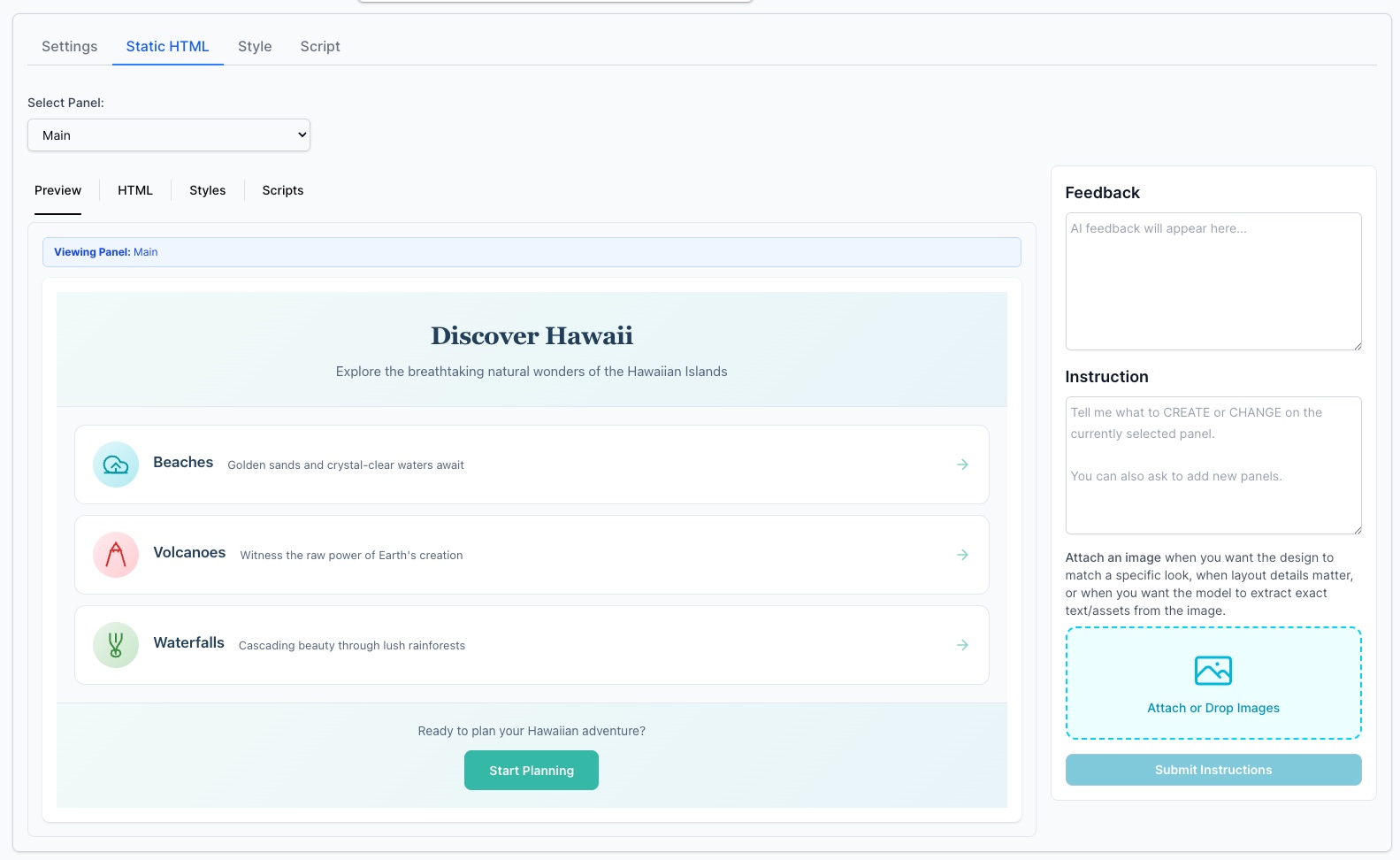

static html

Example: The "Discover Hawaii" panel shown above demonstrates how Static HTML can create an engaging, visually appealing interface with multiple interactive elements.

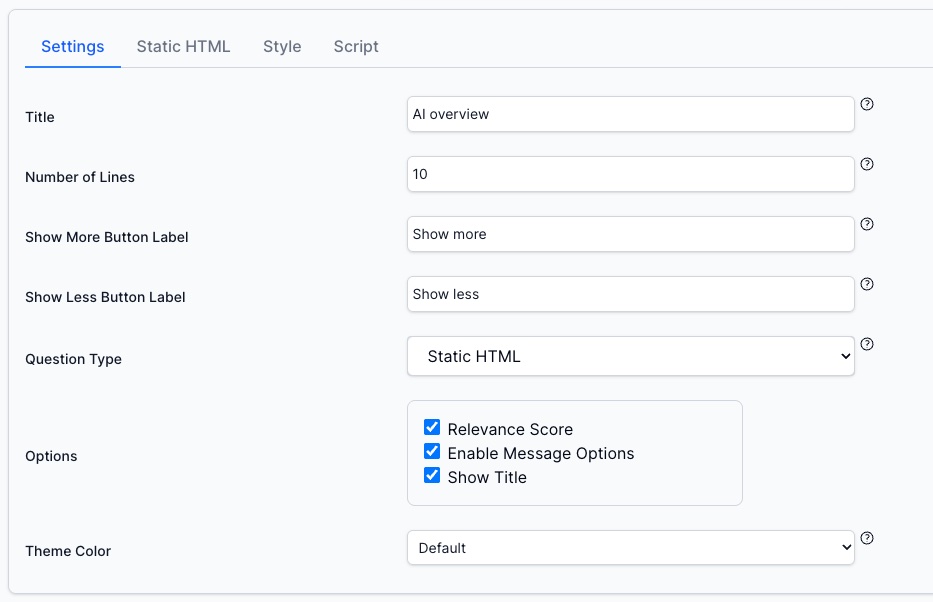

Options

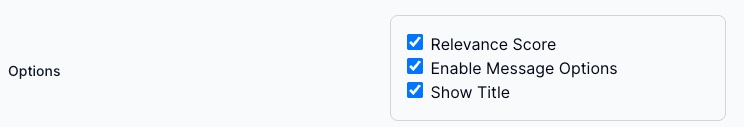

kb options

The Options section provides checkboxes to control the display of additional features:

Relevance Score: When enabled, displays confidence scores or relevance indicators with the AI-generated answers
Enable Message Options: When enabled, provides additional interaction options alongside messages or answer sections
Show Title: When enabled, displays the title above the answer content

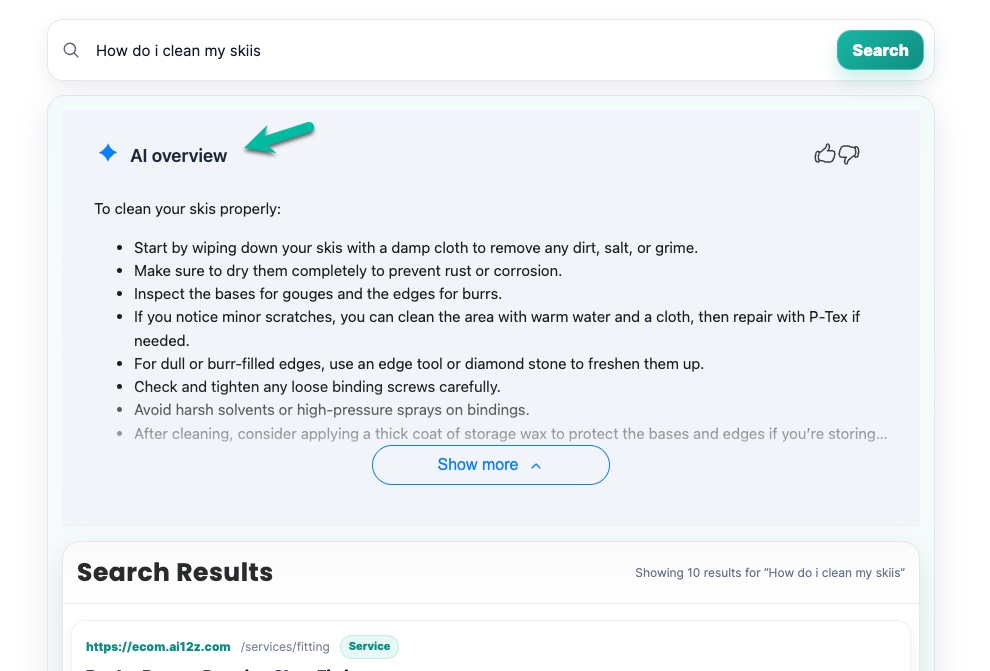

AI Overview

The Knowledge Box can be configured as an AI overview feature for your search experience. This is ideal for organizations that want to enhance their existing search functionality with AI-generated summaries.

How it works:

Users see the AI overview as the first result when they perform a search
The search query is passed to the Knowledge Box via JavaScript
The Number of Lines setting controls the initial content height
When content exceeds the line limit, the Show More Button appears automatically

This provides users with quick AI-generated answers while preserving access to traditional search results below.

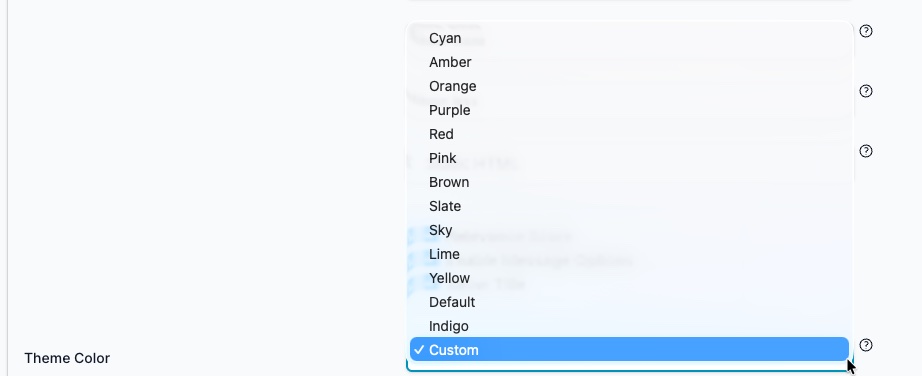

Theme Color

Select a theme

The Theme Color setting allows you to choose a color scheme for your Knowledge Box:

Preset Themes: Select from pre-configured color schemes including Cyan, Amber, Orange, Purple, Red, Pink, Brown, Slate, Sky, Lime, Yellow, Default, and Indigo
Custom: Create a custom theme with your brand colors using CSS variables (see Custom Theme section below)

Create Custom Theme

When you select "Custom" from the Theme Color dropdown, you can define specific CSS variables to match your brand identity:

:root {
  --ai12z-knowledge-box-font-family: ui-sans-serif, system-ui, sans-serif,
    "Apple Color Emoji", "Segoe UI Emoji", "Segoe UI Symbol", "Noto Color Emoji";
  --ai12z-knowledge-box-font-size: 1rem;
  --ai12z-knowledge-box-bg-color: rgb(
    241 245 249
  ); /* background color of the ai response container */
  --ai12z-knowledge-box-button-bgcolor: #007bff; /* ai response button background color  */
  --ai12z-knowledge-box-button-color: #fff; /* ai response button text color */
  --ai12z-knowledge-box-privacy-color: #64748b; /* ai response privacy text color */
  --ai12z-knowledge-box-privacy-font-size: 0.875rem; /* ai response privacy font size */
}

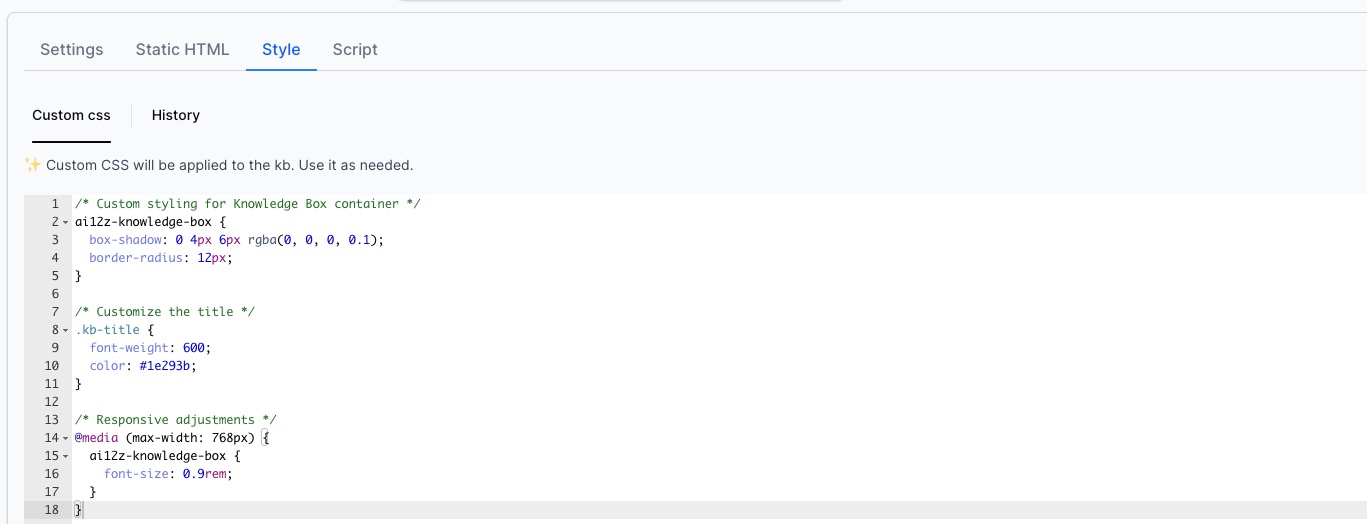

Style Tab

The Style tab allows you to add custom CSS to further customize the appearance of your Knowledge Box beyond the theme settings.

Note: When using Static HTML question type, it has its own dedicated Styles tab separate from this one.

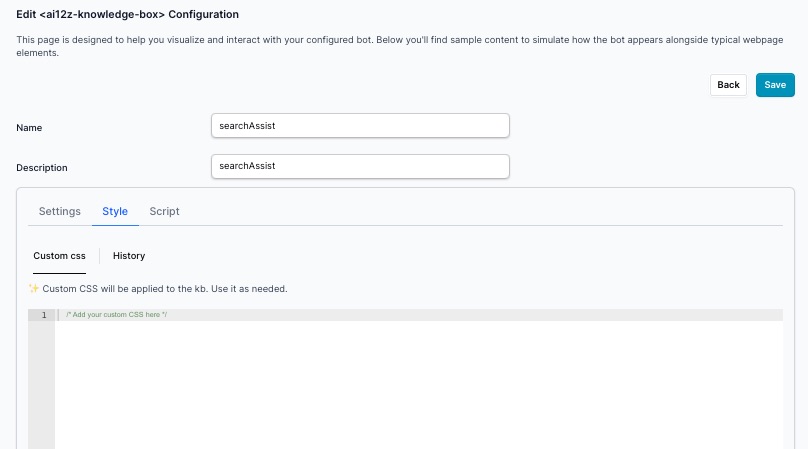

kb additional styles

Custom CSS

Use the Custom CSS editor to:

Override default styles
Add responsive design rules
Customize specific elements within the Knowledge Box
Match your site's design system

Example Custom CSS:

/* Custom styling for Knowledge Box container */
ai12z-knowledge-box {
  box-shadow: 0 4px 6px rgba(0, 0, 0, 0.1);
  border-radius: 12px;
}

/* Customize the title */
.kb-title {
  font-weight: 600;
  color: #1e293b;
}

/* Responsive adjustments */
@media (max-width: 768px) {
  ai12z-knowledge-box {
    font-size: 0.9rem;
  }
}

History

The History tab within the Style section tracks all previous versions of your custom CSS, allowing you to:

Review past changes
Revert to previous versions if needed
Compare different styling approaches

Script Tab

The Script tab enables you to add custom JavaScript to enhance or modify the Knowledge Box behavior.

Note: When using Static HTML question type, it has its own dedicated Scripts tab separate from this one.

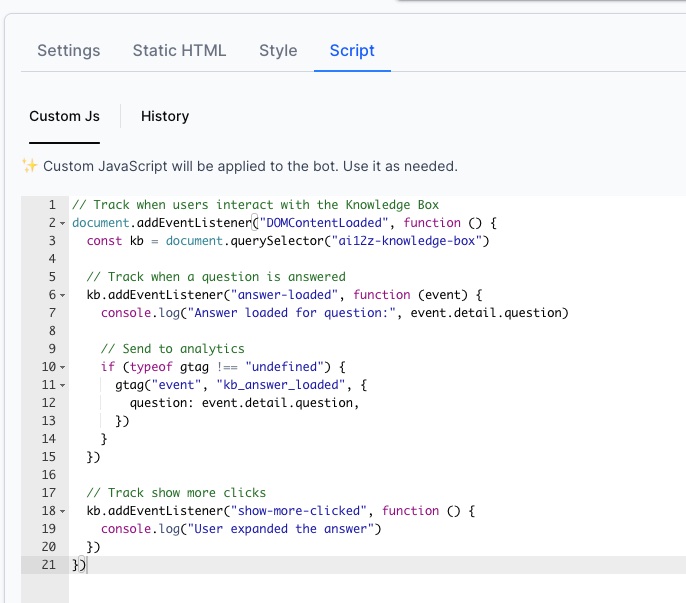

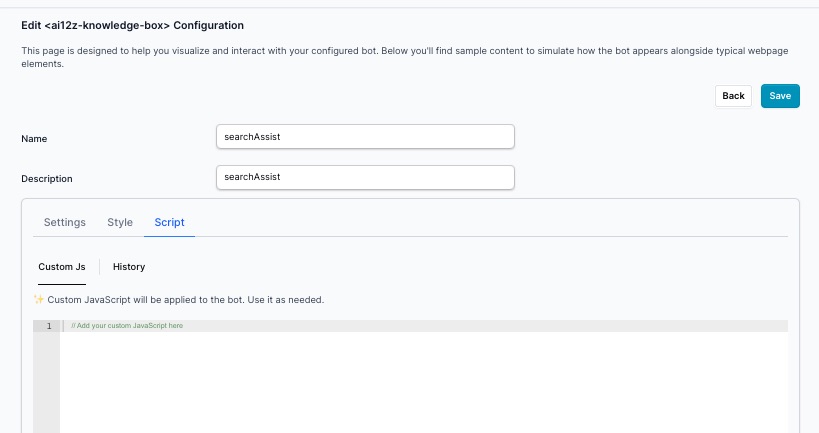

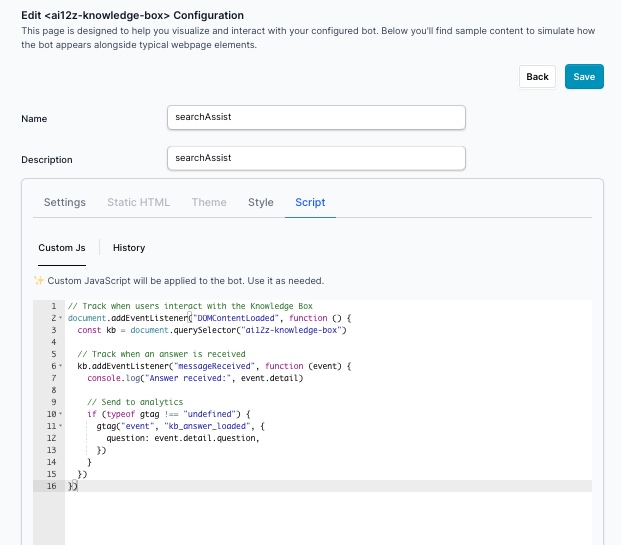

kb additional scripts

Custom JavaScript

Use the Custom JS editor to:

Add event listeners to Knowledge Box interactions
Integrate with analytics or tracking tools
Implement custom business logic
Extend functionality beyond default capabilities

Example Custom JavaScript:

// Track when users interact with the Knowledge Box
document.addEventListener("DOMContentLoaded", function () {
  const kb = document.querySelector("ai12z-knowledge-box")

  // Track when a question is answered
  kb.addEventListener("answer-loaded", function (event) {
    console.log("Answer loaded for question:", event.detail.question)

    // Send to analytics
    if (typeof gtag !== "undefined") {
      gtag("event", "kb_answer_loaded", {
        question: event.detail.question,
      })
    }
  })

  // Track show more clicks
  kb.addEventListener("show-more-clicked", function () {
    console.log("User expanded the answer")
  })
})

History

The History tab within the Script section tracks all previous versions of your custom JavaScript, providing version control and the ability to restore earlier implementations.

Best Practices

Configuration Management

Use Descriptive Names: Give each configuration a clear, descriptive name that indicates its purpose (e.g., "Homepage FAQ", "Product Support", "Search Integration")
Set a Default: Always designate one configuration as the default to ensure the Knowledge Box works even without a specified config-id
Test Before Deploying: Use the configuration preview to test your settings before deploying to production

Question Type Selection

Use Static when you want to showcase a specific answer on page load
Use JavaScript for dynamic integration with search or user interactions
Use Query String when you need shareable or bookmarkable answers

Styling Guidelines

Start with Theme Colors: Use the built-in theme options before adding custom CSS
Maintain Consistency: Ensure your Knowledge Box styling matches your site's overall design
Test Responsiveness: Always verify your custom styles work across different screen sizes
Use CSS Variables: Leverage the provided CSS variables for easier maintenance

Script Safety

Test Thoroughly: Always test custom JavaScript in a development environment first
Avoid Conflicts: Be careful not to override core Knowledge Box functionality
Performance: Keep custom scripts lightweight to maintain fast load times
Error Handling: Include proper error handling in your custom code

Examples

Example 1: Search Integration with AI Overview

Here's a complete example showing how to set up a Knowledge Box with a custom configuration for a search results page:

<!doctype html>
<html lang="en">
  <head>
    <meta charset="utf-8" />
    <meta name="viewport" content="width=device-width, initial-scale=1" />
    <title>Search with AI Knowledge Box</title>

    <!-- ai12z web components -->
    <script
      type="module"
      src="https://cdn.ai12z.net/pkg/ai12z@latest/dist/esm/library.js"
    ></script>
    <link
      rel="stylesheet"
      href="https://cdn.ai12z.net/pkg/ai12z@latest/dist/library/library.css"
    />
  </head>

  <body>
    <div class="search-container">
      <input id="searchInput" type="search" placeholder="Ask a question..." />
      <button id="searchBtn">Search</button>

      <!-- Knowledge Box with specific configuration -->
      <ai12z-knowledge-box
        id="kb"
        data-key="YOUR_API_KEY"
        config-id="69403a0b13dce28e2e1f84f2"
      ></ai12z-knowledge-box>

      <!-- Your existing search results go here -->
      <div id="searchResults"></div>
    </div>

    <script>
      const searchInput = document.getElementById("searchInput")
      const searchBtn = document.getElementById("searchBtn")
      const kb = document.getElementById("kb")

      function handleSearch() {
        const query = searchInput.value.trim()
        if (!query) return

        // Update Knowledge Box with the query
        kb.setAttribute("question", query)

        // Your existing search logic here
        // fetchSearchResults(query);
      }

      searchBtn.addEventListener("click", handleSearch)
      searchInput.addEventListener("keydown", (e) => {
        if (e.key === "Enter") handleSearch()
      })
    </script>
  </body>
</html>
``# Example 2: Product Comparison Tool This example shows how to use the
Knowledge Box for dynamic product comparisons. The Knowledge Box starts with
static content prompting users to select products, then dynamically updates to
show AI-generated comparisons. ```html
<!doctype html>
<html lang="en">
  <head>
    <meta charset="utf-8" />
    <meta name="viewport" content="width=device-width, initial-scale=1" />
    <title>Product Comparison</title>

    <!-- ai12z web components -->
    <script
      type="module"
      src="https://cdn.ai12z.net/pkg/ai12z@latest/dist/esm/library.js"
    ></script>
    <link
      rel="stylesheet"
      href="https://cdn.ai12z.net/pkg/ai12z@latest/dist/library/library.css"
    />

    <style>
      .product-selector {
        display: flex;
        gap: 20px;
        margin: 20px 0;
      }
      .product-card {
        border: 2px solid #e5e7eb;
        border-radius: 8px;
        padding: 15px;
        cursor: pointer;
        transition: border-color 0.3s;
      }
      .product-card.selected {
        border-color: #3b82f6;
        background-color: #eff6ff;
      }
      .compare-btn {
        background: #3b82f6;
        color: white;
        border: none;
        padding: 10px 20px;
        border-radius: 6px;
        cursor: pointer;
        font-size: 16px;
      }
      .compare-btn:disabled {
        background: #9ca3af;
        cursor: not-allowed;
      }
    </style>
  </head>

  <body>
    <h1>Compare Ski Boots</h1>

    <div class="product-selector">
      <div class="product-card" data-product="Rossignol Alltrack Pro">
        <h3>Rossignol Alltrack Pro</h3>
        <p>All-mountain performance</p>
      </div>
      <div class="product-card" data-product="Salomon S/Pro 120">
        <h3>Salomon S/Pro 120</h3>
        <p>Precision fit technology</p>
      </div>
      <div class="product-card" data-product="Atomic Hawx Ultra">
        <h3>Atomic Hawx Ultra</h3>
        <p>Lightweight design</p>
      </div>
    </div>

    <button id="compareBtn" class="compare-btn" disabled>
      Compare Selected Products
    </button>

    <!-- Knowledge Box with Static HTML showing placeholder -->
    <ai12z-knowledge-box
      id="comparisonKB"
      data-key="YOUR_API_KEY"
      config-id="YOUR_CONFIG_ID"
    ></ai12z-knowledge-box>

    <script>
      const productCards = document.querySelectorAll(".product-card")
      const compareBtn = document.getElementById("compareBtn")
      const kb = document.getElementById("comparisonKB")
      let selectedProducts = []

      // Handle product selection
      productCards.forEach((card) => {
        card.addEventListener("click", () => {
          const productName = card.dataset.product

          if (card.classList.contains("selected")) {
            card.classList.remove("selected")
            selectedProducts = selectedProducts.filter((p) => p !== productName)
          } else {
            if (selectedProducts.length < 3) {
              card.classList.add("selected")
              selectedProducts.push(productName)
            }
          }

          // Enable compare button when 2+ products selected
          compareBtn.disabled = selectedProducts.length < 2
        })
      })

      // Handle comparison
      compareBtn.addEventListener("click", () => {
        if (selectedProducts.length >= 2) {
          const comparisonQuery = `Compare these ski boots: ${selectedProducts.join(
            " vs "
          )}. Include details about fit, flex, terrain suitability, and price range.`

          // Update Knowledge Box with comparison question
          kb.setAttribute("question", comparisonQuery)

          // Scroll to results
          kb.scrollIntoView({ behavior: "smooth", block: "start" })
        }
      })
    </script>
  </body>
</html>

Example 3: Contextual Q&A Links

This example demonstrates how to embed Knowledge Box triggers throughout your content for contextual help.

<!doctype html>
<html lang="en">
  <head>
    <meta charset="utf-8" />
    <meta name="viewport" content="width=device-width, initial-scale=1" />
    <title>Product Page with Contextual Help</title>

    <!-- ai12z web components -->
    <script
      type="module"
      src="https://cdn.ai12z.net/pkg/ai12z@latest/dist/esm/library.js"
    ></script>
    <link
      rel="stylesheet"
      href="https://cdn.ai12z.net/pkg/ai12z@latest/dist/library/library.css"
    />

    <style>
      .help-link {
        color: #3b82f6;
        text-decoration: underline;
        cursor: pointer;
        font-weight: 500;
      }
      .help-link:hover {
        color: #2563eb;
      }
      #helpKB {
        margin-top: 20px;
        display: none;
      }
      #helpKB.visible {
        display: block;
      }
    </style>
  </head>

  <body>
    <h1>Atomic Hawx Ultra 120 S</h1>

    <div class="product-details">
      <p>
        <strong>Flex Rating:</strong> 120
        <span
          class="help-link"
          data-question="What does flex rating mean for ski boots?"
        >
          What does this mean?
        </span>
      </p>

      <p>
        <strong>Last Width:</strong> 100mm
        <span
          class="help-link"
          data-question="How do I determine my ski boot last width?"
        >
          How do I choose?
        </span>
      </p>

      <p>
        <strong>Recommended Use:</strong> All-mountain
        <span
          class="help-link"
          data-question="What's the difference between all-mountain and powder ski boots?"
        >
          See terrain guide
        </span>
      </p>
    </div>

    <!-- Knowledge Box for contextual answers -->
    <ai12z-knowledge-box
      id="helpKB"
      data-key="YOUR_API_KEY"
      config-id="YOUR_CONFIG_ID"
    ></ai12z-knowledge-box>

    <script>
      const helpLinks = document.querySelectorAll(".help-link")
      const helpKB = document.getElementById("helpKB")

      helpLinks.forEach((link) => {
        link.addEventListener("click", (e) => {
          const question = e.target.dataset.question

          // Update Knowledge Box with the question
          helpKB.setAttribute("question", question)

          // Show the Knowledge Box
          helpKB.classList.add("visible")

          // Scroll to the answer
          helpKB.scrollIntoView({ behavior: "smooth", block: "start" })
        })
      })
    </script>
  </body>
</html>

##`

Troubleshooting

Configuration Not Loading

Problem: The Knowledge Box doesn't reflect your configuration changes.

Solutions:

Verify the config-id matches exactly (case-sensitive)
Clear your browser cache and reload
Check that the configuration is saved (not in draft mode)
Verify your API key is correct

Custom Styles Not Applied

Problem: Custom CSS doesn't appear to work.

Solutions:

Check for CSS specificity issues - you may need to use !important or more specific selectors
Verify there are no syntax errors in your CSS
Remember that Knowledge Box uses Shadow DOM - some styles may need to use CSS variables
Test with browser developer tools to see which styles are being applied

JavaScript Errors

Problem: Custom JavaScript causes errors or breaks functionality.

Solutions:

Check browser console for specific error messages
Ensure all event listeners are properly attached
Verify that DOM elements exist before accessing them
Use try-catch blocks for error handling

Knowledge Box Component - Main component documentation
Agent Settings - Managing your agent and API keys
AI Brand Creation - Customizing AI responses

Overview​

Why Use the Knowledge Box?​

1. AI Overview for Search Enhancement​

2. Dynamic Content Replacement​

3. Comparison​

4. Contextual Q&A Within Pages​

Managing Configurations​

List of Configuration​

Using a Configuration​

Configuration Tabs​

Settings Tab​

Basic Settings​

Question Type​

1. Static Query​

2. JavaScript​

3. Query String​

4. Static HTML​

Options​

AI Overview​

Theme Color​

Create Custom Theme​

Style Tab​

Custom CSS​

History​

Script Tab​

Custom JavaScript​

History​

Best Practices​

Configuration Management​

Question Type Selection​

Styling Guidelines​

Script Safety​

Examples​

Example 1: Search Integration with AI Overview​

Example 3: Contextual Q&A Links​

Troubleshooting​

Configuration Not Loading​

Custom Styles Not Applied​

JavaScript Errors​

Related Documentation​

Overview

Why Use the Knowledge Box?

1. AI Overview for Search Enhancement

2. Dynamic Content Replacement

3. Comparison

4. Contextual Q&A Within Pages

Managing Configurations

List of Configuration

Using a Configuration

Configuration Tabs

Settings Tab

Basic Settings

Question Type

1. Static Query

2. JavaScript

3. Query String

4. Static HTML

Options

AI Overview

Theme Color

Create Custom Theme

Style Tab

Custom CSS

History

Script Tab

Custom JavaScript

History

Best Practices

Configuration Management

Question Type Selection

Styling Guidelines

Script Safety

Examples

Example 1: Search Integration with AI Overview

Example 3: Contextual Q&A Links

Troubleshooting

Configuration Not Loading

Custom Styles Not Applied

JavaScript Errors

Related Documentation
