HubSpot Contact Integration

Create and update contacts in HubSpot CRM through your ai12z agent. This integration allows users to submit contact information directly through conversational interactions, with the system automatically creating or updating contact records regardless of previous form submissions.

🎯 Use Cases

• Lead Generation: Capture visitor information during chat conversations
• Contact Updates: Update existing contact records with new information
• Sales Qualification: Collect prospect details for sales follow-up
• Newsletter Signups: Add contacts to marketing lists
• Event Registration: Capture attendee information
• Support Tickets: Create contacts when users request assistance

---

🛠️ Step 1: Set Up HubSpot API Access

Prerequisites

• Active HubSpot account (Free, Starter, or higher)
• HubSpot Private App with appropriate scopes

Create HubSpot Private App

1. In HubSpot, go to Settings → Integrations → Private Apps
2. Click Create a private app
3. Configure:
   • Name: "ai12z Contact Integration"
   • Description: "Contact creation and updates from ai12z agent"
4. In Scopes tab, select:
   • crm.objects.contacts.read
   • crm.objects.contacts.write
   • crm.schemas.contacts.read (if using custom properties)
5. Click Create app and copy the Access Token

---

🛠️ Step 2: Configure the Integration in ai12z

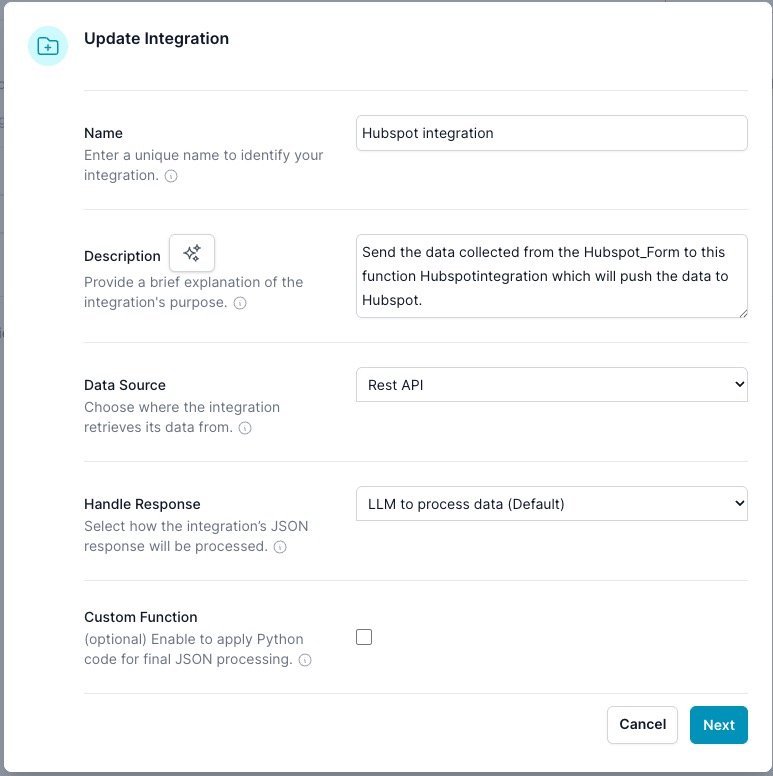

Create New Integration

1. Open your Agent → Integrations → Custom Integrations

2. Click Create Integration

3. Configure basic settings:

   • Name: "HubSpot Contact Creation"
   • Description: "Creates or updates contacts in HubSpot CRM with user-provided information"

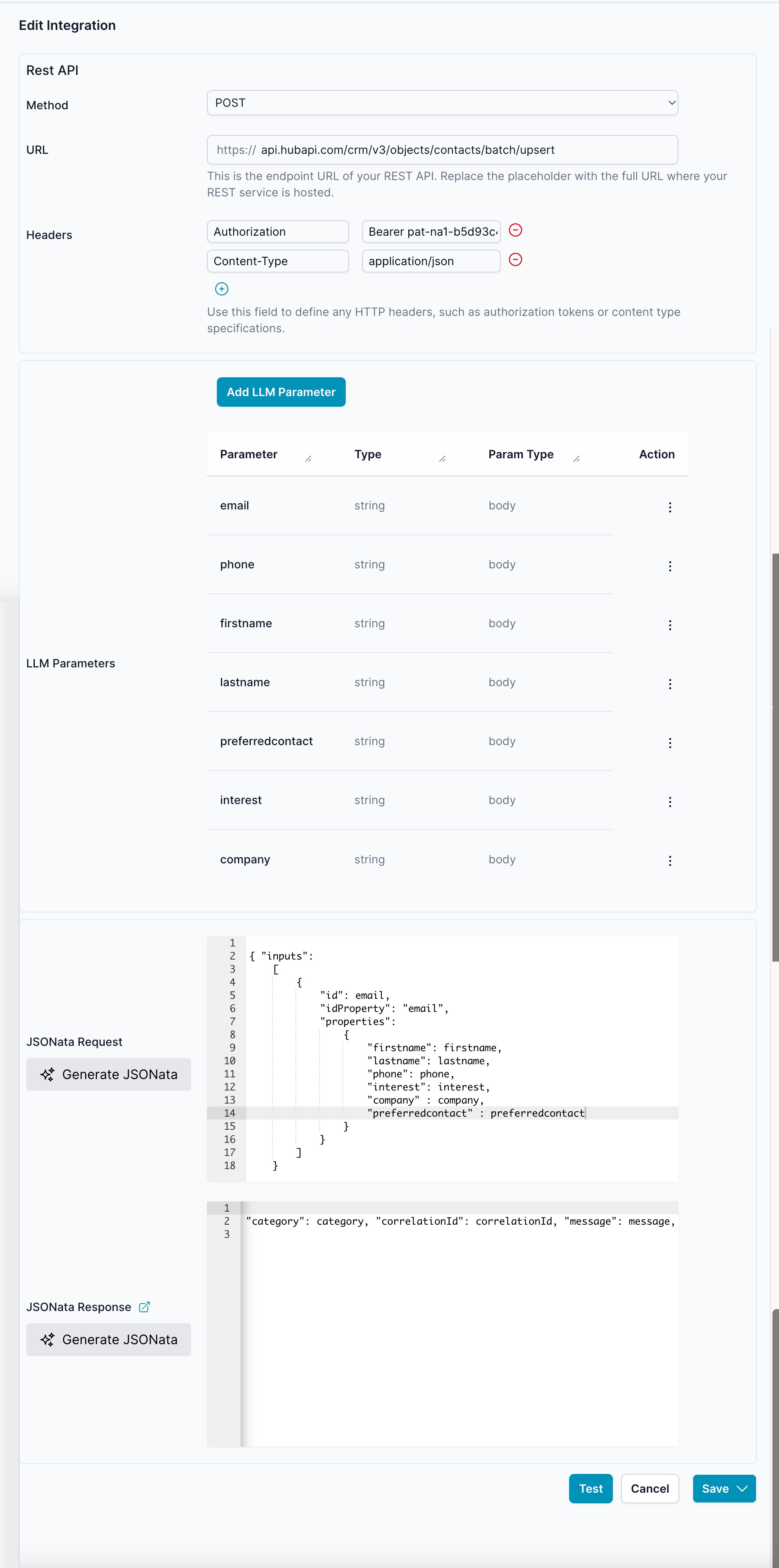

REST API Configuration

• Method: POST
• URL: https://api.hubapi.com/crm/v3/objects/contacts/batch/upsert
• Headers:
  • Authorization: Bearer YOUR_HUBSPOT_ACCESS_TOKEN
  • Content-Type: application/json

---

🛠️ Step 3: Configure LLM Parameters

Set up the parameters that the AI will collect from users:

Parameter	Type	Param Type	Description
email	string	body	Contact's email address (required)
firstname	string	body	Contact's first name
lastname	string	body	Contact's last name
phone	string	body	Contact's phone number
company	string	body	Contact's company name
interest	string	body	Area of interest or inquiry topic
preferredcontact	string	body	Preferred contact method

LLM Parameter Instructions

Add this guidance for the AI to understand when and how to use the integration:

Use this integration when a user provides contact information or expresses interest in being contacted.

Collect at minimum:
- Email address (required)
- First name and last name
- Company (if applicable)

Optional fields to gather:
- Phone number
- Specific areas of interest
- Preferred contact method

Example user prompts that trigger this integration:
- "I'd like to speak with someone about your services"
- "Can someone contact me about pricing?"
- "Sign me up for your newsletter"
- "I want to schedule a demo"

Always confirm the information with the user before submitting.

---

🛠️ Step 4: JSONata Request Configuration

Use this JSONata expression to format the request payload:

{
  "inputs": [
    {
      "id": email,
      "idProperty": "email",
      "properties": {
        "firstname": firstname,
        "lastname": lastname,
        "phone": phone,
        "company": company,
        "interest": interest,
        "preferredcontact": preferredcontact
      }
    }
  ]
}

Why Batch Upsert?

The /batch/upsert endpoint automatically:

• Creates new contacts if email doesn't exist
• Updates existing contacts if email is found
• Handles duplicate prevention
• Processes multiple contacts in single request (future scaling)

---

🛠️ Step 5: Response Handling

JSONata Response Processing

Configure response handling to provide user feedback:

{
  "category": "success",
  "correlationId": results[0].id,
  "message": "Thank you! Your information has been saved and someone from our team will contact you soon."
}

Error Handling

Add error response mapping for common scenarios:

{
  "category": $exists(errors) ? "error" : "success",
  "message": $exists(errors) ?
    "There was an issue saving your information. Please try again or contact us directly." :
    "Thank you! Your contact information has been successfully saved."
}

---

🛠️ Step 6: Test the Integration

Test in Agent

1. Open Test Drive in your agent
2. Try these test scenarios:

New Contact Creation:

User: "I'd like someone to contact me about your services"
Agent: "I'd be happy to help connect you with our team. Could you provide your email and name?"
User: "My email is john.doe@company.com, I'm John Doe from Acme Corp"

Existing Contact Update:

User: "Update my contact info - my new phone number is 555-0123"
Agent: "I can help update your information. What's the email address on your account?"
User: "It's jane.smith@example.com"

Verify in HubSpot

1. Go to HubSpot Contacts → Contacts
2. Search for the test email address
3. Verify contact was created/updated with correct information
4. Check contact timeline for integration activity

---

📊 Advanced Configuration

Custom Properties

To use HubSpot custom properties:

1. Add custom property names to LLM Parameters
2. Include in JSONata request under properties
3. Ensure Private App has crm.schemas.contacts.read scope

List Assignment

Add contacts to specific lists by including listMemberships:

{
  "inputs": [
    {
      "id": email,
      "idProperty": "email",
      "properties": { /* contact properties */ },
      "associations": [
        {
          "to": { "id": "LIST_ID" },
          "types": [{ "associationCategory": "HUBSPOT_DEFINED", "associationTypeId": 2 }]
        }
      ]
    }
  ]
}

Lead Scoring

Trigger lead scoring by setting lifecycle stage:

"properties": {
  "firstname": firstname,
  "lastname": lastname,
  "lifecyclestage": "lead",
  "lead_source": "ai12z_chatbot"
}

---

🔧 Troubleshooting

Common Issues

Error: "Property 'email' is required"

• Ensure email parameter is marked as required
• Validate email format in user input
• Check JSONata maps email field correctly

Error: "Unauthorized" (401)

• Verify HubSpot access token is current
• Confirm Private App has necessary scopes
• Check token wasn't regenerated in HubSpot

Error: "Property doesn't exist"

• Verify custom property names match HubSpot exactly
• Check property is available for contacts object
• Ensure Private App has schema read permissions

Contacts not appearing in HubSpot

• Check integration logs for API responses
• Verify HubSpot account has contact storage available
• Confirm email format is valid

Testing Tools

Postman Collection: Test HubSpot API directly

curl -X POST \
  https://api.hubapi.com/crm/v3/objects/contacts/batch/upsert \
  -H 'Authorization: Bearer YOUR_TOKEN' \
  -H 'Content-Type: application/json' \
  -d '{
    "inputs": [{
      "id": "test@example.com",
      "idProperty": "email",
      "properties": {
        "firstname": "Test",
        "lastname": "User"
      }
    }]
  }'

---

🎯 Best Practices

Data Collection

• Always collect email as the primary identifier
• Validate phone number formats when provided
• Confirm information before submitting to HubSpot
• Respect user privacy and data collection preferences

Integration Performance

• Use batch endpoints for multiple contacts
• Implement retry logic for failed requests
• Cache frequently used list IDs and property names
• Monitor rate limits (100 requests per 10 seconds)

User Experience

• Provide clear confirmation when contact is saved
• Offer alternative contact methods if integration fails
• Allow users to update their information easily
• Respect opt-out requests immediately

---

📈 Analytics & Monitoring

Track integration success through:

• HubSpot Reports: Contact creation by source
• ai12z Logs: Integration call success rates
• User Feedback: Confirmation response rates
• CRM Pipeline: Leads generated from chatbot
