Creating Contact Form Capture in Welcome Messages

This guide demonstrates how to create a contact information capture form that appears when the chatbot opens. This is ideal for lead generation, user registration, or collecting contact details before users interact with your AI assistant.

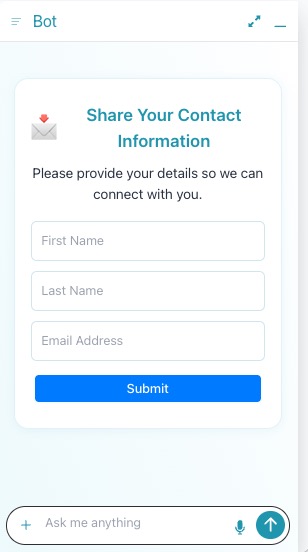

Bot welcome Message

Overview​

The contact form capture feature allows you to:

  • Collect user contact information (name, email, etc.) when the bot opens
  • Validate form data before submission
  • Send structured data to your system via JSON
  • Provide a seamless user experience with form validation and feedback
  • Automatically hide the form after successful submission

Use Cases​

  • Lead Generation: Capture potential customer information
  • User Registration: Collect details for personalized experiences
  • Support Tickets: Gather contact info before support conversations
  • Newsletter Signups: Build email lists through bot interactions
  • Event Registration: Collect attendee information

Implementation Steps​

Step 1: Configure the Welcome Message​

  1. Go to Web Controls → ai12z-bot → Your Configuration
  2. Navigate to Info tab → Welcome Message
  3. Configure the HTML, Styles, and Script tabs as shown below

Step 2: Add HTML Structure​

Add this HTML in the HTML Tab:

<div class="ai12z-contact-panel my-welcome-panel">
  <div class="ai12z-contact-header">
    <span class="ai12z-contact-icon" aria-hidden="true">📩</span> Share Your
    Contact Information
  </div>
  <div class="ai12z-contact-message">
    Please provide your details so we can connect with you.
  </div>

  <div class="ai12z-contact-inputs">
    <input
      type="text"
      id="firstName"
      placeholder="First Name"
      aria-label="First Name"
      required
    />
    <input
      type="text"
      id="lastName"
      placeholder="Last Name"
      aria-label="Last Name"
      required
    />
    <input
      type="email"
      id="email"
      placeholder="Email Address"
      aria-label="Email Address"
      required
    />
    <button type="button" class="ai12zBtn" id="contactSubmit">Submit</button>
  </div>
</div>

Step 3: Add Styling​

Add this CSS in the Styles Tab:

.ai12z-contact-panel {
  background: #fff;
  border-radius: 18px;
  box-shadow: 0 2px 12px 0 rgba(32, 149, 174, 0.07);
  padding: 28px 20px;
  margin: 18px auto 0 auto;
  max-width: 480px;
  text-align: center;
  font-family: inherit;
  border: 1px solid #e3f2f7;
}

.ai12z-contact-header {
  font-size: 1.35rem;
  font-weight: 600;
  margin-bottom: 12px;
  color: var(--ai12zBot-v2-title-color, #2095ae);
  display: flex;
  align-items: center;
  justify-content: center;
  gap: 8px;
  letter-spacing: 0.01em;
}

.ai12z-contact-icon {
  font-size: 1.5em;
}

.ai12z-contact-message {
  font-size: 1.08rem;
  margin-bottom: 20px;
  color: #2a3342;
}

.ai12z-contact-inputs {
  display: flex;
  flex-direction: column;
  gap: 12px;
  align-items: stretch;
}

.ai12z-contact-inputs input {
  padding: 12px;
  border-radius: 7px;
  border: 1px solid #d0e6ed;
  font-size: 1rem;
  outline: none;
}

.ai12z-contact-inputs input:focus {
  border-color: #2095ae;
  box-shadow: 0 0 0 3px rgba(32, 149, 174, 0.12);
}

.ai12zBtn {
  color: var(--ai12zBot-v2-button-font-color, #fff);
  background: var(--ai12zBot-v2-button-background, #2095ae);
  font-weight: 500;
  border: none;
  border-radius: 7px;
  padding: 13px 18px;
  cursor: pointer;
  font-size: 1rem;
  box-shadow: 0 1px 4px 0 rgba(32, 149, 174, 0.07);
  transition:
    background 0.18s,
    box-shadow 0.18s,
    transform 0.02s ease-in-out;
}

.ai12zBtn:hover,
.ai12zBtn:focus {
  background: #176e86;
  color: #fff;
  box-shadow: 0 2px 8px 0 rgba(32, 149, 174, 0.13);
}

.ai12zBtn:active {
  transform: translateY(1px);
}

@media (max-width: 600px) {
  .ai12z-contact-panel {
    padding: 20px 10px;
    max-width: 98vw;
    margin: 10px auto 0;
  }
  .ai12z-contact-header {
    font-size: 1.12rem;
  }
}

Step 4: Add JavaScript Functionality​

Add this JavaScript in the Script Tab:

;(() => {
  // Run once per bot instance, even if the script is injected multiple times
  if (ai12zBot.__contactFormLoaded) return
  ai12zBot.__contactFormLoaded = true

  /** Attach contact form behavior inside the Shadow DOM */
  const initContactForm = (target) => {
    const panel = target.querySelector(".my-welcome-panel")
    if (!panel || panel.dataset.bound === "1") return

    const firstNameEl = panel.querySelector("#firstName")
    const lastNameEl = panel.querySelector("#lastName")
    const emailEl = panel.querySelector("#email")
    const submitBtn = panel.querySelector("#contactSubmit")
    if (!firstNameEl || !lastNameEl || !emailEl || !submitBtn) return

    const isValidEmail = (v) => /^[^\s@]+@[^\s@]+\.[^\s@]+$/.test(v)

    const handleSubmit = () => {
      const firstName = firstNameEl.value.trim()
      const lastName = lastNameEl.value.trim()
      const email = emailEl.value.trim()

      if (!firstName || !lastName || !email) {
        alert("Please fill out all fields.")
        return
      }
      if (!isValidEmail(email)) {
        alert("Please enter a valid email address.")
        emailEl.focus()
        return
      }

      submitBtn.disabled = true
      const prevText = submitBtn.textContent
      submitBtn.textContent = "Sending..."

      try {
        // Send JSON data to your system
        ai12zBot.sendJSON(
          { email, firstName, lastName },
          "Users Contact information"
        )

        // Clear & hide panel (conversation continues)
        firstNameEl.value = ""
        lastNameEl.value = ""
        emailEl.value = ""
        panel.style.display = "none"

        ai12zBot.sendMessage("Thank you! Your information has been submitted.")
      } finally {
        submitBtn.disabled = false
        submitBtn.textContent = prevText
      }
    }

    submitBtn.onclick = handleSubmit
    panel.addEventListener("keydown", (e) => {
      if (e.key === "Enter") {
        e.preventDefault()
        handleSubmit()
      }
    })

    panel.dataset.bound = "1"
  }

  /** Translation support (if using multilingual features) */
  const translateWelcomePanel = (target) => {
    const innerContent = target.querySelector(".my-welcome-panel")
    if (!innerContent) return

    // Add your translation code here if needed

    initContactForm(target)
  }

  // Observer to detect when bot opens
  const observer = new MutationObserver((mutationsList) => {
    for (const mutation of mutationsList) {
      if (
        mutation.type === "attributes" &&
        mutation.attributeName === "class"
      ) {
        const target = mutation.target
        if (target.classList.contains("is-open")) {
          translateWelcomePanel(target)
          initContactForm(target)
        }
      }
    }
  })

  const waitAndObserveLayout = () => {
    const layoutNode = ai12zBot.shadowRoot?.querySelector(".layout")
    if (!layoutNode) {
      setTimeout(waitAndObserveLayout, 100)
      return
    }

    observer.observe(layoutNode, {
      attributes: true,
      subtree: true,
      attributeFilter: ["class"],
    })

    if (layoutNode.classList.contains("is-open")) {
      translateWelcomePanel(layoutNode)
      initContactForm(layoutNode)
    }
  }

  waitAndObserveLayout()
})()

Key Features​

Form Validation​

  • Required Fields: All fields must be filled out
  • Email Validation: Validates email format using regex
  • Real-time Feedback: Shows alerts for validation errors
  • Focus Management: Automatically focuses invalid fields

User Experience​

  • Loading States: Button shows "Sending..." during submission
  • Form Clearing: Automatically clears form after successful submission
  • Form Hiding: Hides form panel after submission to continue conversation
  • Keyboard Support: Submit form using Enter key
  • Responsive Design: Optimized for mobile devices

Data Handling​

  • JSON Submission: Sends structured data using ai12zBot.sendJSON()
  • Metadata: Includes descriptive metadata with the submission
  • Error Handling: Graceful error handling with user feedback

Customization Options​

Adding More Fields​

You can extend the form with additional fields:

<!-- Add phone number field -->
<input
  type="tel"
  id="phone"
  placeholder="Phone Number"
  aria-label="Phone Number"
/>

<!-- Add company field -->
<input type="text" id="company" placeholder="Company" aria-label="Company" />

<!-- Add dropdown selection -->
<select id="interest" aria-label="Area of Interest">
  <option value="">Select Interest</option>
  <option value="sales">Sales</option>
  <option value="support">Support</option>
  <option value="partnership">Partnership</option>
</select>

Update the JavaScript to handle new fields:

const phoneEl = panel.querySelector("#phone")
const companyEl = panel.querySelector("#company")
const interestEl = panel.querySelector("#interest")

// In handleSubmit function:
const phone = phoneEl?.value.trim() || ""
const company = companyEl?.value.trim() || ""
const interest = interestEl?.value || ""

ai12zBot.sendJSON(
  {
    email,
    firstName,
    lastName,
    phone,
    company,
    interest,
  },
  "Users Contact information"
)

Styling Customization​

Customize the appearance by modifying CSS variables:

.ai12z-contact-panel {
  /* Change colors */
  --primary-color: #2095ae;
  --border-color: #e3f2f7;
  --background-color: #fff;

  /* Customize spacing */
  padding: 32px 24px;
  margin: 20px auto;

  /* Adjust sizing */
  max-width: 500px;
  border-radius: 20px;
}

Validation Rules​

Add custom validation rules:

const isValidPhone = (v) => /^\+?[\d\s\-\(\)]+$/.test(v)

// In handleSubmit function:
if (phone && !isValidPhone(phone)) {
  alert("Please enter a valid phone number.")
  phoneEl.focus()
  return
}

Integration with CTA Controls​

If using this with CTA (Call-to-Action) controls instead of the bot, change the JSON submission method:

// For CTA controls, use:
ai12zCta.sendJSON({ email, firstName, lastName }, "Users Contact information")

// Instead of:
ai12zBot.sendJSON({ email, firstName, lastName }, "Users Contact information")

Best Practices​

User Experience​

  1. Keep it Simple: Only ask for essential information
  2. Clear Labels: Use descriptive placeholders and labels
  3. Progressive Disclosure: Consider showing form after initial interaction
  4. Mobile-First: Ensure form works well on mobile devices

Data Collection​

  1. Privacy Compliance: Ensure GDPR/CCPA compliance
  2. Secure Transmission: Data is sent securely through the platform
  3. Data Validation: Always validate on both client and server side
  4. Clear Purpose: Explain why you're collecting the information

Performance​

  1. Single Initialization: Script prevents multiple initialization
  2. Event Delegation: Efficient event handling
  3. Memory Management: Proper cleanup and scoping
  4. Lazy Loading: Form only activates when bot opens

Troubleshooting​

Form Not Appearing​

  • Check that all CSS classes match between HTML and CSS
  • Verify the bot configuration is active
  • Ensure the script is properly loaded

Validation Issues​

  • Verify email regex pattern is working
  • Check that all required elements exist in DOM
  • Test form submission flow thoroughly

Data Not Sending​

  • Confirm ai12zBot.sendJSON() is the correct method for your setup
  • Check browser console for JavaScript errors
  • Verify network connectivity and API endpoints

Mobile Display Issues​

  • Test responsive CSS media queries
  • Ensure form is accessible on touch devices
  • Verify viewport meta tag is present on your page

This contact form capture feature provides a professional way to collect user information while maintaining a smooth conversational experience with your AI assistant.

Advanced Features​

Conditional Form Display​

Show the form only for certain conditions:

const showContactForm = () => {
  // Only show for new visitors
  const hasVisited = localStorage.getItem("hasVisited")
  if (hasVisited) {
    panel.style.display = "none"
    return false
  }

  // Mark as visited
  localStorage.setItem("hasVisited", "true")
  return true
}

Multi-step Forms​

Create a multi-step contact form:

let currentStep = 1
const totalSteps = 3

const showStep = (step) => {
  // Hide all steps
  panel
    .querySelectorAll(".form-step")
    .forEach((el) => (el.style.display = "none"))

  // Show current step
  panel.querySelector(`.form-step-${step}`).style.display = "block"

  // Update progress indicator
  panel.querySelector(".progress-bar").style.width =
    `${(step / totalSteps) * 100}%`
}

Integration with Analytics​

Track form interactions:

const handleSubmit = () => {
  // Analytics tracking
  if (typeof gtag !== "undefined") {
    gtag("event", "contact_form_submit", {
      event_category: "engagement",
      event_label: "bot_welcome_form",
    })
  }

  // Rest of submit logic...
}

This comprehensive contact form system provides a powerful way to capture leads and engage users from the moment they interact with your AI assistant.

Common Errors and Troubleshooting​

Error: "ai12zBot is not defined"​

Cause: Script is not properly loaded or bot is not initialized Solution:

  • Ensure the script is in the Script Tab of your bot configuration
  • Verify the bot configuration is active and saved
  • Check that the bot is properly embedded on your page

Error: "Cannot read property of undefined"​

Cause: DOM elements not found Solution:

// Add safety checks in your script
const panel = target.querySelector(".my-welcome-panel")
if (!panel) {
  console.log("Panel not found - check HTML structure")
  return
}

Error: Form not submitting​

Cause: Missing event handlers or validation issues Solution: Check browser console for JavaScript errors and ensure all form elements have correct IDs:

<!-- Ensure IDs match JavaScript selectors -->
<input type="text" id="firstName" placeholder="First Name" required />
<input type="text" id="lastName" placeholder="Last Name" required />
<input type="email" id="email" placeholder="Email Address" required />
<button type="button" class="ai12zBtn" id="contactSubmit">Submit</button>

Error: sendJSON is not a function​

Cause: Incorrect method call or bot not ready Solution:

// Check if sendJSON exists before calling
if (typeof ai12zBot.sendJSON === "function") {
  ai12zBot.sendJSON({ email, firstName, lastName }, "Users Contact information")
} else {
  console.error("sendJSON method not available")
}

Error: Form appears but doesn't hide after submission​

Cause: Panel hiding logic not working Solution:

// Ensure panel reference is correct
panel.style.display = "none"
// Alternative method:
panel.classList.add("hidden") // Add .hidden { display: none !important; } to CSS

Debugging Steps:​

  1. Open Browser Console (F12) and check for error messages
  2. Verify Element IDs match between HTML and JavaScript
  3. Test Form Validation by submitting with empty/invalid fields
  4. Check Network Tab to see if data is being sent
  5. Verify Bot Configuration is active and saved

Quick Debug Script:​

Add this to your Script tab to help diagnose issues:

// Debug helper - add at the beginning of your script
console.log("Contact form script loading...")
console.log("ai12zBot available:", typeof ai12zBot !== "undefined")

// Add this inside initContactForm function
console.log("Panel found:", !!panel)
console.log("Form elements found:", {
  firstName: !!firstNameEl,
  lastName: !!lastNameEl,
  email: !!emailEl,
  submit: !!submitBtn,
})
