CTA Popup from Search Bar

Overview

The ai12z CTA (Call-to-Action) component with toolbar search integration provides a seamless way to combine traditional search UI patterns with AI-powered conversational interfaces. This implementation places a search bar directly on your page that, when submitted, opens a modal dialog containing the ai12z chat assistant with the user's question automatically sent.

This pattern is ideal for:

Maintaining familiar search UI while adding AI capabilities
Creating hero sections with contextual AI assistance
Providing non-intrusive access to AI help throughout your site
Enhancing user experience without replacing existing navigation

Visual Example

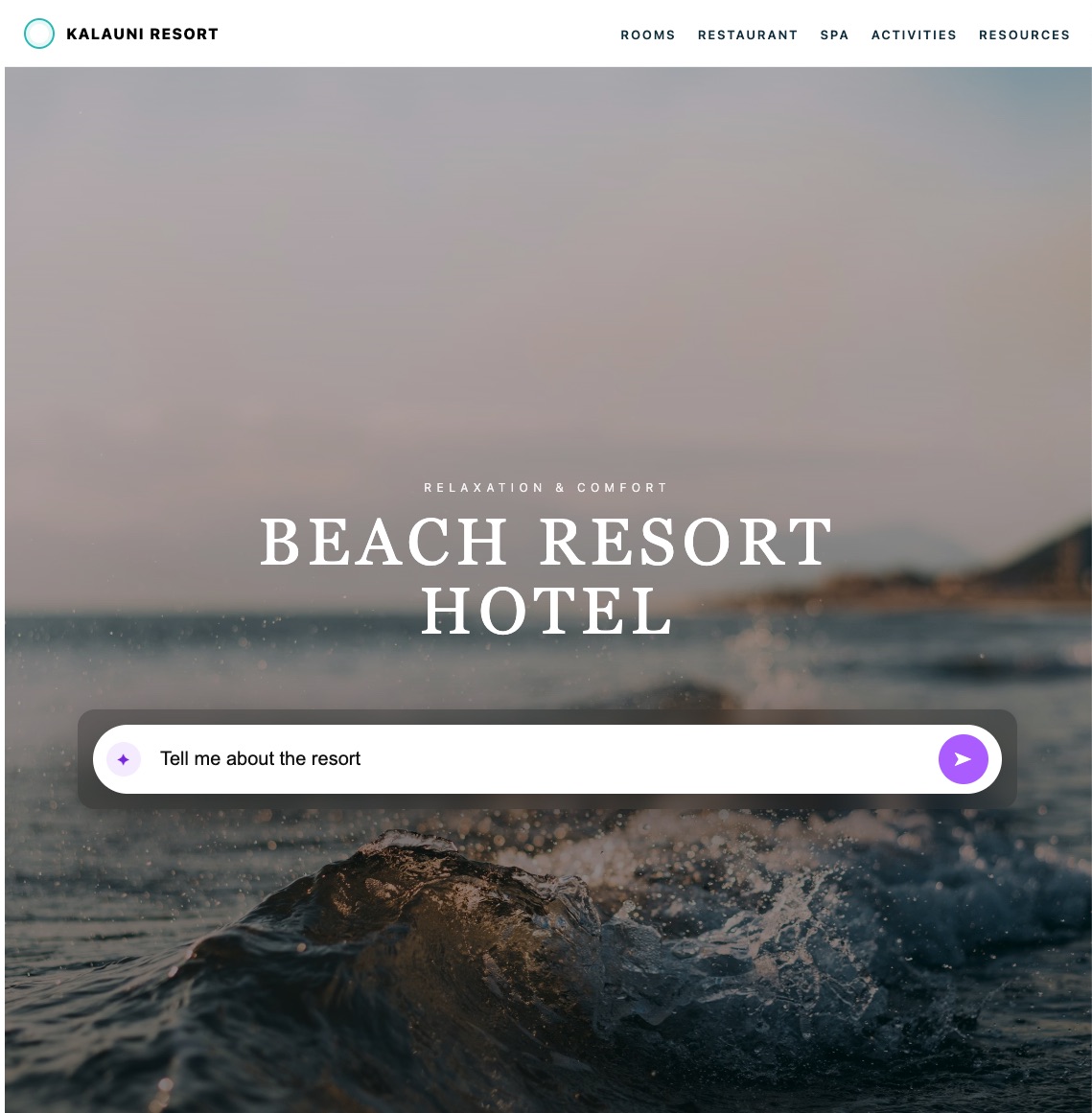

The search bar appears in-context on your page, often positioned over hero images or in prominent locations:

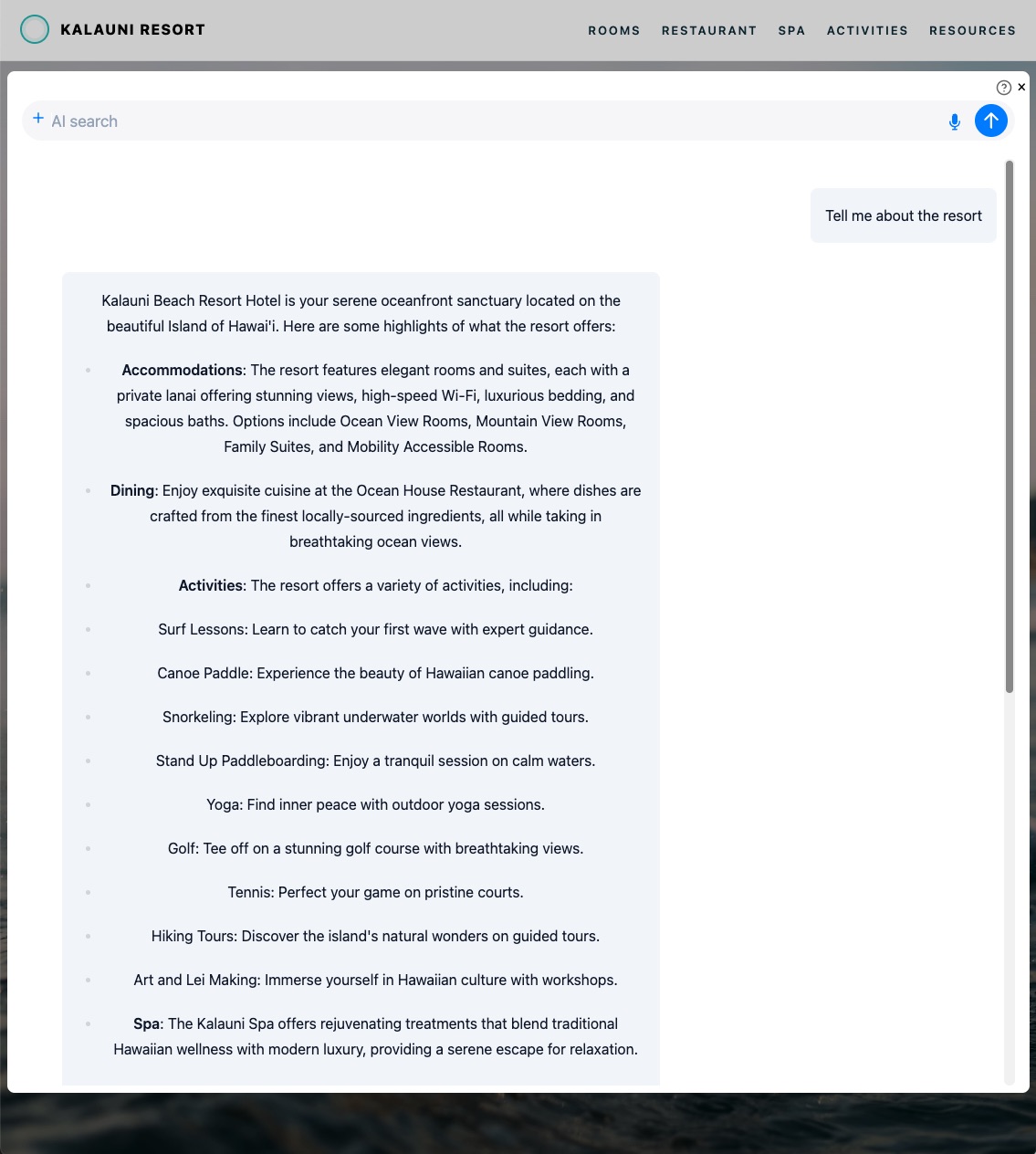

When users submit a query, it opens a modal dialog with AI-generated responses:

Configuration

The CTA popup behavior is controlled through the configuration interface in your ai12z dashboard:

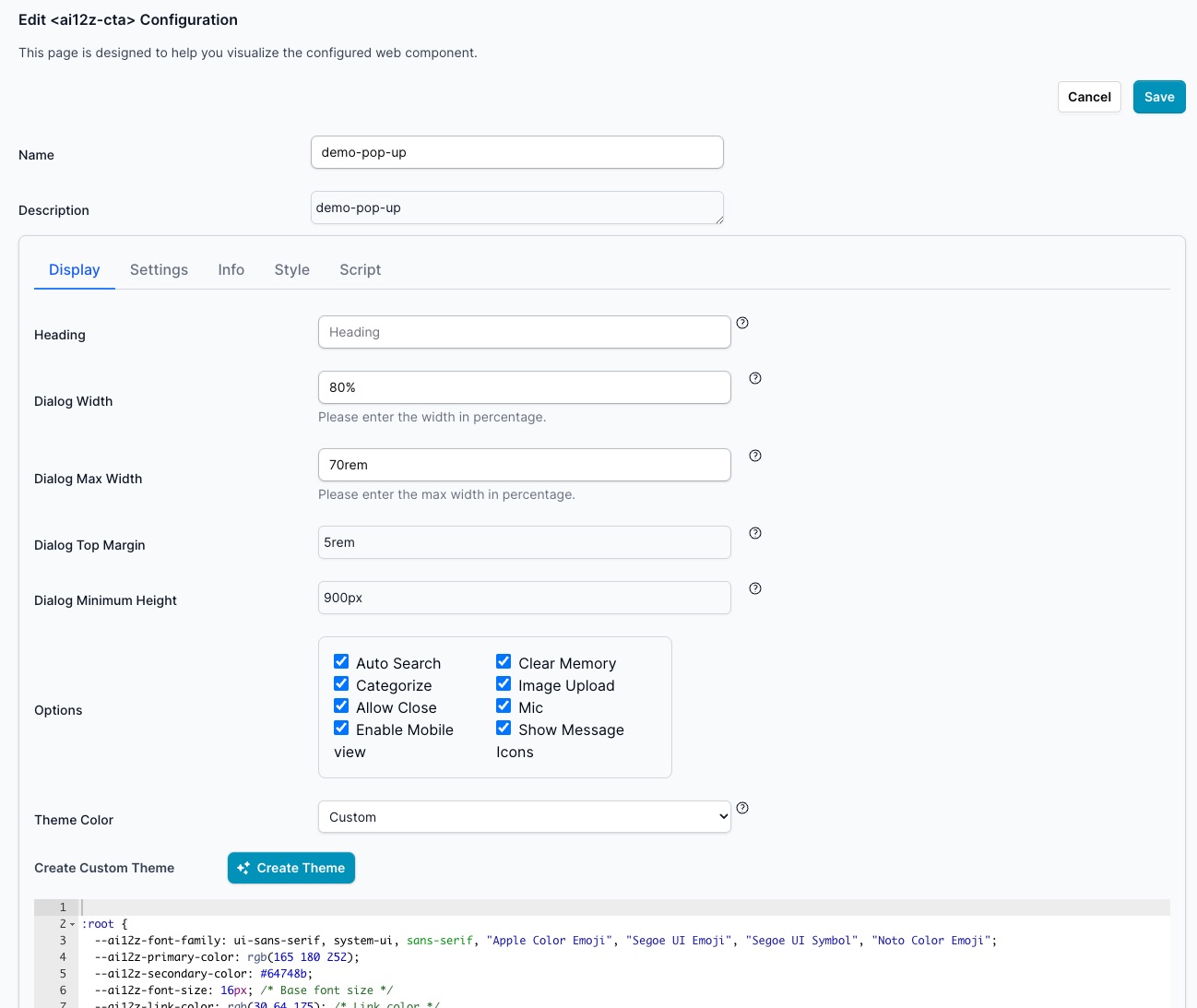

Modal dialog setting

Display Settings

The Display tab controls the modal dialog appearance and behavior:

Setting	Description	Default	Example
Heading	Title displayed at the top of the modal	-	"Ask AI Assistant", "Search Help"
Dialog Width	Width of the modal as a percentage of viewport	80%	"70%", "90%"
Dialog Max Width	Maximum width constraint	70rem	"60rem", "900px"
Dialog Top Margin	Space from top of viewport	5rem	"3rem", "80px"
Dialog Minimum Height	Minimum height of the dialog	900px	"700px", "80vh"

Options

Control various features of the modal dialog:

Auto Search: Automatically processes the search query when dialog opens
Categorize: Enables categorization of responses
Allow Close: Displays close button (X) in the modal header
Enable Mobile View: Optimizes layout for mobile devices
Clear Memory: Clears conversation history when dialog reopens
Image Upload: Allows users to upload images in the conversation
Mic: Enables voice input functionality
Show Message Icons: Displays icons alongside messages

Theme Color

Choose from predefined themes or create a custom theme to match your brand:

Default: Standard ai12z styling
Custom: Define your own color scheme using CSS variables

See the Style tab for advanced customization options.

Implementation

Basic Setup

First, include the ai12z web components in your HTML:

<head>
  <!-- ai12z web components (CDN) -->
  <script
    type="module"
    src="https://cdn.ai12z.net/pkg/ai12z@latest/dist/esm/library.js"
  ></script>
  <link
    rel="stylesheet"
    href="https://cdn.ai12z.net/pkg/ai12z@latest/dist/library/library.css"
  />
</head>

Component Structure

The <ai12z-cta> component uses slots to customize the trigger element. Replace the default button with a search bar:

<ai12z-cta id="searchCta" data-key="YOUR_API_KEY">
  <!-- Custom search bar trigger (slot="cta") -->
  <div slot="cta" class="search-wrapper">
    <form id="searchForm" class="search-form">
      <input
        id="searchInput"
        class="search-input"
        type="search"
        placeholder="Tell me about the resort"
        aria-label="Search"
      />
      <button class="search-button" type="submit" aria-label="Submit">➤</button>
    </form>
  </div>

  <!-- Optional custom privacy notice -->
  <div slot="custom-privacy" class="privacy-note">
    Privacy Statement:
    <a href="/privacy" target="_blank">Click to view</a>
  </div>
</ai12z-cta>

JavaScript Integration

The JavaScript handles opening the modal and sending the search query:

document.addEventListener("DOMContentLoaded", () => {
  const cta = document.getElementById("searchCta")
  const form = document.getElementById("searchForm")
  const input = document.getElementById("searchInput")

  // Configure CTA options
  cta.options = {
    allowClose: true,
    autoSearch: true,
  }

  // Add contextual data
  cta.dataAttributes = {
    origin: window.location.href,
    path: window.location.pathname,
    title: document.title,
  }

  // Handle form submission
  form.addEventListener("submit", async (e) => {
    e.preventDefault()

    const query = input.value.trim()
    if (!query) return

    // Open the modal
    await openCta(cta)

    // Send the question
    await sendToCta(cta, query)

    // Clear input
    input.value = ""
  })
})

// Helper function to open CTA modal
async function openCta(cta) {
  await customElements.whenDefined("ai12z-cta")

  return new Promise((resolve) => {
    cta.addEventListener("open", () => resolve(true), { once: true })

    if (typeof cta.action === "function") {
      cta.action("open", { expanded: false })
    }
  })
}

// Helper function to send message
async function sendToCta(cta, text) {
  if (typeof cta.sendMessage === "function") {
    await cta.sendMessage(text)
    return
  }

  // Fallback: find chat component in shadow DOM
  const chat = cta.shadowRoot?.querySelector("ai12z-chat")
  if (chat && typeof chat.sendMessage === "function") {
    await chat.sendMessage(text)
  }
}

Complete Example: Resort Website

This example demonstrates a complete implementation for a beach resort website with a hero section and search bar:

<!doctype html>
<html lang="en">
  <head>
    <meta charset="utf-8" />
    <meta name="viewport" content="width=device-width,initial-scale=1" />
    <title>Kalauni Resort — Search Bar → Open CTA + Send</title>

    <!-- ai12z web components (CDN) -->
    <script
      type="module"
      src="https://cdn.ai12z.net/pkg/ai12z@next/dist/esm/library.js"
    ></script>
    <link
      rel="stylesheet"
      href="https://cdn.ai12z.net/pkg/ai12z@next/dist/library/library.css"
    />

    <style>
      :root {
        color-scheme: light;
      }
      body {
        margin: 0;
        font-family:
          ui-sans-serif,
          system-ui,
          -apple-system,
          Segoe UI,
          Roboto,
          Arial,
          sans-serif;
      }

      .topbar {
        position: sticky;
        top: 0;
        z-index: 20;
        display: flex;
        align-items: center;
        justify-content: space-between;
        padding: 18px 22px;
        background: rgba(255, 255, 255, 0.92);
        backdrop-filter: blur(10px);
        border-bottom: 1px solid rgba(0, 0, 0, 0.06);
      }
      .brand {
        display: flex;
        align-items: center;
        gap: 12px;
        font-weight: 800;
        letter-spacing: 0.08em;
      }
      .brandMark {
        width: 28px;
        height: 28px;
        border-radius: 999px;
        border: 2px solid #2bb8b4;
        box-shadow: 0 0 0 4px rgba(43, 184, 180, 0.12) inset;
      }
      nav a {
        color: #0f2d3a;
        text-decoration: none;
        font-weight: 600;
        margin-left: 18px;
        font-size: 13px;
        letter-spacing: 0.14em;
      }

      .hero {
        min-height: calc(100vh - 64px);
        display: grid;
        place-items: center;
        position: relative;
        background: linear-gradient(
            to bottom,
            rgba(0, 0, 0, 0.22),
            rgba(0, 0, 0, 0.55)
          ),
          url("https://images.unsplash.com/photo-1500375592092-40eb2168fd21?auto=format&fit=crop&w=2400&q=80");
        background-size: cover;
        background-position: center;
      }
      .heroInner {
        text-align: center;
        padding: 48px 18px;
        max-width: 980px;
        color: #fff;
      }
      .eyebrow {
        font-size: 12px;
        letter-spacing: 0.45em;
        text-transform: uppercase;
        opacity: 0.9;
      }
      h1 {
        margin: 14px 0 22px;
        font-family: ui-serif, Georgia, "Times New Roman", Times, serif;
        font-weight: 500;
        font-size: clamp(42px, 6vw, 84px);
        letter-spacing: 0.1em;
        line-height: 1.05;
        text-transform: uppercase;
      }

      /* ---------- Search bar (replaces "ASK AI" button) ---------- */
      .askWrap {
        width: min(980px, calc(100vw - 36px));
        margin: 20px auto 0;
        display: flex;
        justify-content: center;
      }

      .askBar {
        width: min(980px, calc(100vw - 36px));
        background: rgba(0, 0, 0, 0.26);
        padding: 16px;
        border-radius: 18px;
        backdrop-filter: blur(10px);
        box-shadow: 0 18px 70px rgba(0, 0, 0, 0.3);
      }

      .askForm {
        display: flex;
        align-items: center;
        gap: 14px;
        background: #fff;
        border-radius: 999px;
        padding: 10px 14px;
        box-shadow: 0 14px 40px rgba(0, 0, 0, 0.22);
      }

      .askIconLeft {
        width: 36px;
        height: 36px;
        display: grid;
        place-items: center;
        border-radius: 999px;
        background: rgba(170, 92, 255, 0.12);
        color: rgba(120, 40, 220, 1);
        font-weight: 900;
        user-select: none;
      }

      .askInput {
        flex: 1;
        border: none;
        outline: none;
        font-size: 20px;
        padding: 12px 6px;
        color: #111;
        min-width: 0;
      }
      .askInput::placeholder {
        color: #8a8a8a;
      }

      .askSend {
        width: 52px;
        height: 52px;
        border: none;
        border-radius: 999px;
        background: rgba(170, 92, 255, 1);
        color: #fff;
        cursor: pointer;
        display: grid;
        place-items: center;
        font-size: 20px;
      }
      .askSend:hover {
        filter: brightness(1.05);
      }
      .askSend:disabled {
        opacity: 0.65;
        cursor: not-allowed;
      }

      .privacyNote {
        font-size: 12px;
        color: rgba(255, 255, 255, 0.85);
      }
      .privacyNote a {
        color: #ffffff;
        text-decoration: underline;
      }
    </style>
  </head>

  <body>
    <header class="topbar">
      <div class="brand">
        <span class="brandMark" aria-hidden="true"></span>
        <span>KALAUNI RESORT</span>
      </div>
      <nav aria-label="Primary">
        <a href="#rooms">ROOMS</a>
        <a href="#restaurant">RESTAURANT</a>
        <a href="#spa">SPA</a>
        <a href="#activities">ACTIVITIES</a>
        <a href="#resources">RESOURCES</a>
      </nav>
    </header>

    <main class="hero">
      <div class="heroInner">
        <div class="eyebrow">RELAXATION &amp; COMFORT</div>
        <h1>BEACH RESORT<br />HOTEL</h1>

        <!-- ai12z-cta is still the thing that opens the modal -->
        <ai12z-cta id="kalauniAsk" data-key="Enter your key">
          <!-- Replace CTA button with a SEARCH BAR (slot="cta") -->
          <div slot="cta" class="askWrap">
            <div class="askBar">
              <form id="kalauniAskForm" class="askForm" autocomplete="off">
                <div class="askIconLeft" aria-hidden="true">✦</div>

                <input
                  id="kalauniAskInput"
                  class="askInput"
                  type="search"
                  placeholder="Ask something…"
                  aria-label="Ask Kalauni"
                />

                <button
                  id="kalauniAskSend"
                  class="askSend"
                  type="submit"
                  aria-label="Send"
                >
                  ➤
                </button>
              </form>
            </div>

            <!-- Hidden opener (more reliable than cta.action in some builds) -->
            <button
              id="kalauniHiddenOpen"
              type="button"
              style="position:fixed; left:-9999px; top:-9999px; width:1px; height:1px; opacity:0;"
              aria-hidden="true"
              tabindex="-1"
            >
              open
            </button>
          </div>

          <div slot="custom-privacy" class="privacyNote">
            Privacy Statement:
            <a href="/privacy" target="_blank" rel="noopener">Click to view</a>
          </div>
        </ai12z-cta>
      </div>
    </main>

    <script>
      const sleep = (ms) => new Promise((r) => setTimeout(r, ms))

      async function waitForSelector(root, selector, timeoutMs = 8000) {
        const start = Date.now()
        while (Date.now() - start < timeoutMs) {
          const el = root?.querySelector?.(selector)
          if (el) return el
          await sleep(120)
        }
        return null
      }

      async function openCta(cta) {
        await customElements.whenDefined("ai12z-cta")

        // wait for "open" event (or time out)
        const opened = new Promise((resolve) => {
          const t = setTimeout(() => resolve(false), 4500)
          cta.addEventListener(
            "open",
            () => {
              clearTimeout(t)
              resolve(true)
            },
            { once: true }
          )
        })

        // best effort: use API if present, otherwise click hidden opener
        if (typeof cta.action === "function") {
          try {
            await cta.action("open", { expanded: false })
            const ok = await opened
            if (ok) return true
          } catch (e) {
            // fall through
          }
        }

        document.getElementById("kalauniHiddenOpen")?.click()
        return await opened
      }

      async function sendToCta(cta, text) {
        const msg = (text || "").trim()
        if (!msg) return

        // If the component exposes sendMessage, use it
        if (typeof cta.sendMessage === "function") {
          await cta.sendMessage(msg)
          return
        }

        // Otherwise try ai12z-chat inside the CTA shadow DOM
        const chat = await waitForSelector(cta.shadowRoot, "ai12z-chat", 8000)
        if (chat && typeof chat.sendMessage === "function") {
          await chat.sendMessage(msg)
          return
        }

        // Last resort: set input + click send inside chat shadow root
        if (chat?.shadowRoot) {
          const input = chat.shadowRoot.querySelector("textarea, input")
          if (input) {
            input.focus()
            input.value = msg
            input.dispatchEvent(new Event("input", { bubbles: true }))
          }
          const sendBtn =
            chat.shadowRoot.querySelector('button[type="submit"]') ||
            chat.shadowRoot.querySelector("button.send") ||
            chat.shadowRoot.querySelector("button")
          sendBtn?.click()
        }
      }

      document.addEventListener("DOMContentLoaded", () => {
        const cta = document.getElementById("kalauniAsk")
        const form = document.getElementById("kalauniAskForm")
        const input = document.getElementById("kalauniAskInput")
        const sendBtn = document.getElementById("kalauniAskSend")

        if (!cta || !form || !input || !sendBtn) return

        // Close button in ai12z modal
        cta.options = { allowClose: true }

        // Context you can use via {attributes} / {origin}
        cta.dataAttributes = {
          origin: window.location.href,
          path: window.location.pathname,
          title: document.title,
          section: "home",
          lang: document.documentElement.lang || "en",
        }

        // Prevent clicking/focusing in the search bar from auto-opening the modal.
        // We only open on submit (Enter or arrow button).
        form.addEventListener("click", (e) => e.stopPropagation())
        input.addEventListener("click", (e) => e.stopPropagation())
        input.addEventListener("focus", (e) => e.stopPropagation())

        form.addEventListener("submit", async (e) => {
          e.preventDefault()

          const q = (input.value || "").trim()
          if (!q) return

          sendBtn.disabled = true

          // Open ai12z modal (reliable)
          const ok = await openCta(cta)
          if (!ok) {
            console.error("ai12z-cta did not open (no 'open' event).")
            sendBtn.disabled = false
            return
          }

          // Give the modal a beat to render the chat input
          await sleep(150)

          // Send the question so it answers immediately
          await sendToCta(cta, q)

          // Clear field for next question
          input.value = ""

          sendBtn.disabled = false
        })
      })
    </script>
  </body>
</html>

This creates a fully functional search bar that opens an AI-powered modal dialog.

Styling Guidelines

Search Bar Styling

Create an attractive search bar that fits your design:

.search-wrapper {
  width: min(980px, calc(100vw - 36px));
  margin: 20px auto 0;
}

.search-form {
  display: flex;
  align-items: center;
  gap: 14px;
  background: #fff;
  border-radius: 999px;
  padding: 10px 14px;
  box-shadow: 0 14px 40px rgba(0, 0, 0, 0.22);
}

.search-input {
  flex: 1;
  border: none;
  outline: none;
  font-size: 20px;
  padding: 12px 6px;
  color: #111;
}

.search-input::placeholder {
  color: #8a8a8a;
}

.search-button {
  width: 52px;
  height: 52px;
  border: none;
  border-radius: 999px;
  background: rgba(170, 92, 255, 1);
  color: #fff;
  cursor: pointer;
  font-size: 20px;
}

.search-button:hover {
  filter: brightness(1.05);
}

Control the modal appearance through the Style tab in your configuration or using CSS:

/* Custom theme variables */
:root {
  --ai12z-cta-dialog-width: 80%;
  --ai12z-cta-dialog-max-width: 70rem;
  --ai12z-cta-dialog-bg: #ffffff;
  --ai12z-cta-overlay-bg: rgba(0, 0, 0, 0.5);
}

/* Responsive adjustments */
@media (max-width: 768px) {
  :root {
    --ai12z-cta-dialog-width: 95%;
    --ai12z-cta-dialog-max-width: 100%;
  }
}

Advanced Features

Preventing Auto-Open on Focus

By default, you may want to prevent the modal from opening when users click on the search bar (only opening on submit):

// Prevent clicking/focusing in the search bar from auto-opening the modal
form.addEventListener("click", (e) => e.stopPropagation())
input.addEventListener("click", (e) => e.stopPropagation())
input.addEventListener("focus", (e) => e.stopPropagation())

Adding Context Data

Pass contextual information to the AI for more relevant responses:

cta.dataAttributes = {
  origin: window.location.href,
  path: window.location.pathname,
  title: document.title,
  section: "home",
  lang: document.documentElement.lang || "en",
  userType: "guest", // or detect from your auth system
}

This data can be referenced in your AI prompts using template variables like {origin}, {title}, etc.

Voice Input Integration

If the "Mic" option is enabled in your configuration, users can use voice input in the modal dialog. No additional code is required—it's automatically available.

Image Upload Support

Enable the "Image Upload" option in configuration to allow users to include images in their questions. This is useful for:

Visual search queries
Product identification
Troubleshooting with screenshots
Accessibility needs

Use Cases

1. Hero Section Search

Place the search bar prominently in your hero section to immediately offer AI assistance:

<section class="hero">
  <h1>BEACH RESORT HOTEL</h1>
  <p>RELAXATION & COMFORT</p>

  <ai12z-cta data-key="YOUR_KEY" config-id="hero-search">
    <div slot="cta">
      <input type="search" placeholder="Tell me about the resort" />
    </div>
  </ai12z-cta>
</section>

2. Help Center Integration

Add contextual help without disrupting the user's flow:

cta.dataAttributes = {
  page: "checkout",
  step: "payment",
  category: "support",
}

3. Product Search Enhancement

Combine traditional product search with AI-powered recommendations:

form.addEventListener("submit", async (e) => {
  e.preventDefault()

  // Show traditional results
  loadTraditionalResults(query)

  // Also open AI assistant for conversational help
  await openCta(cta)
  await sendToCta(cta, `Help me find: ${query}`)
})

Help users find content or navigate complex sites:

<ai12z-cta data-key="YOUR_KEY">
  <div slot="cta">
    <input type="search" placeholder="How can I help you today?" />
  </div>
</ai12z-cta>

Best Practices

User Experience

Clear Placeholder Text: Use descriptive placeholders that indicate what users can ask
Visual Feedback: Provide loading states when opening the modal
Keyboard Support: Ensure Enter key works for submission
Mobile Optimization: Enable "Enable Mobile View" in configuration for responsive design
Accessibility: Include proper ARIA labels and keyboard navigation

Performance

Lazy Loading: Consider loading the ai12z component only when needed
Debouncing: If implementing auto-suggest, debounce input events
Caching: Enable "Clear Memory" option if you don't need conversation persistence
Image Optimization: If using background images, optimize for web

Content Strategy

Context Awareness: Pass relevant page context to improve AI responses
Predefined Queries: Consider showing suggested questions below the search bar
Conversation Design: Configure your agent to handle common search patterns
Fallback Options: Provide links to traditional search if AI doesn't meet needs

Troubleshooting

Problem: The modal dialog doesn't appear when submitting the search.

Solutions:

Verify your API key is correct
Check browser console for errors
Ensure the ai12z-cta component is fully loaded before calling action()
Use the customElements.whenDefined() promise to wait for component registration

await customElements.whenDefined("ai12z-cta")

Search Query Not Sent

Problem: The modal opens but the question isn't automatically sent.

Solutions:

Verify "Auto Search" is enabled in configuration
Check that the sendMessage() method is available
Add a small delay (100-200ms) after opening before sending
Use the fallback method to find the chat component in shadow DOM

Styling Not Applied

Problem: Custom styles don't appear to work.

Solutions:

Remember that ai12z components use Shadow DOM
Use CSS custom properties (variables) for theming
Apply styles through the Style tab in configuration
Check CSS specificity and selector syntax

Mobile Layout Issues

Problem: Dialog doesn't display properly on mobile devices.

Solutions:

Enable "Enable Mobile View" in configuration options
Adjust Dialog Width to 95% or higher for mobile
Set Dialog Max Width appropriately
Test on actual devices, not just browser DevTools

Configuration Reference

CTA Component Attributes

Attribute	Type	Description	Required
`data-key`	String	Your ai12z API key	Yes
`config-id`	String	Specific configuration ID to use	No
`data-mode`	String	Server mode: `dev` or `prod`	No (default: `prod`)

JavaScript API

Method	Parameters	Description
`cta.action()`	`'open'`, `{ expanded: boolean }`	Opens the modal dialog
`cta.sendMessage()`	`string`	Sends a message to the chat
`cta.options`	`object`	Set component options
`cta.dataAttributes`	`object`	Pass contextual data to AI

Events

Event Name	Description	Event Detail
`open`	Fired when modal opens	-
`close`	Fired when modal closes	-
`message-sent`	Fired when message is sent	`{ message: string }`
`answer-received`	Fired when AI responds	`{ response: string }`

CTA Buttons Guide - Working with CTA buttons
Agent Configuration - Setting up your agent and API keys
Chatbot Integration - Understanding the bot component

Example Repository

For more examples and starter templates, visit our GitHub examples repository.

Overview​

Visual Example​

Search Toolbar​

Modal Dialog Results​

Configuration​

Display Settings​

Options​

Theme Color​

Implementation​

Basic Setup​

Component Structure​

JavaScript Integration​

Complete Example: Resort Website​

Styling Guidelines​

Search Bar Styling​

Modal Dialog Customization​

Advanced Features​

Preventing Auto-Open on Focus​

Adding Context Data​

Voice Input Integration​

Image Upload Support​

Use Cases​

1. Hero Section Search​

2. Help Center Integration​

3. Product Search Enhancement​

4. Navigation Assistant​

Best Practices​

User Experience​

Performance​

Content Strategy​

Troubleshooting​

Modal Doesn't Open​

Search Query Not Sent​

Styling Not Applied​

Mobile Layout Issues​

Configuration Reference​

CTA Component Attributes​

JavaScript API​

Events​

Related Documentation​

Example Repository​

Overview

Visual Example

Search Toolbar

Modal Dialog Results

Configuration

Display Settings

Options

Theme Color

Implementation

Basic Setup

Component Structure

JavaScript Integration

Complete Example: Resort Website

Styling Guidelines

Search Bar Styling

Modal Dialog Customization

Advanced Features

Preventing Auto-Open on Focus

Adding Context Data

Voice Input Integration

Image Upload Support

Use Cases

1. Hero Section Search

2. Help Center Integration

3. Product Search Enhancement

4. Navigation Assistant

Best Practices

User Experience

Performance

Content Strategy

Troubleshooting

Modal Doesn't Open

Search Query Not Sent

Styling Not Applied

Mobile Layout Issues

Configuration Reference

CTA Component Attributes

JavaScript API

Events

Related Documentation

Example Repository
