Google Analytics 4 Integration

Connect Google Analytics 4 to your GEO Bot so it can answer questions that combine your GEO report data with live site performance — traffic sources, landing page engagement, AI referral trends, conversions, and more.

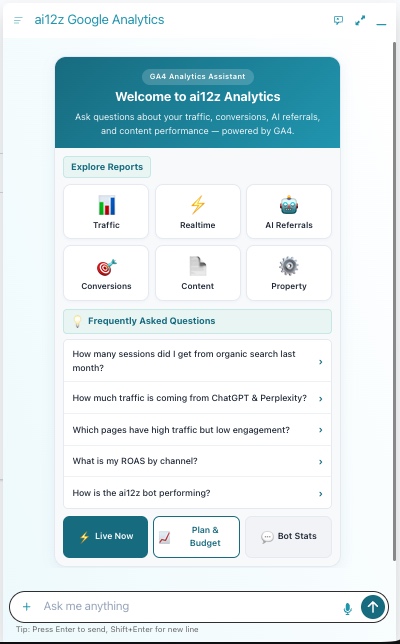

Multi panel Bot

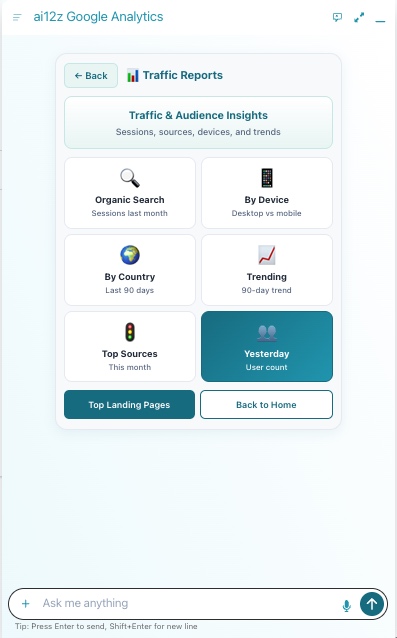

Traffic analytics

What It Does

Once connected, the GEO Bot can cross-reference your GEO reports with live GA4 data to answer questions like:

• "Which pages have high GEO scores but low traffic?"
• "What pages are getting AI referral traffic but not converting?"
• "Did traffic to my pricing page change after I updated it?"
• "How much of my traffic is coming from ChatGPT, Perplexity, and Gemini?"
• "Which pages have high organic traffic but low engagement — my best GEO targets?"

---

Part 1: Set Up in Google Cloud Console

This is a one-time step done by ai12z to configure the shared OAuth application. If you are a client connecting your own GA4 property, skip to Part 2.

1a. Create a Google Cloud Project

1. Go to console.cloud.google.com
2. Click the project dropdown (top left) → New Project
3. Name it ai12z-google-analytics-mcp

1b. Enable Required APIs

1. Left menu → APIs & Services → Enable APIs and Services
2. Search for and enable:
   • Google Analytics Data API
   • Google Analytics Admin API

1c. Configure the OAuth Consent Screen

1. Left menu → APIs & Services → OAuth consent screen
2. User type: External (so any client Google account can authorize)
3. Fill in app name (ai12z), support email, and developer email
4. Add scopes:
   • https://www.googleapis.com/auth/analytics.readonly
   • https://www.googleapis.com/auth/analytics.edit
5. Submit for verification if needed (required for production use with external users)

1d. Create the OAuth 2.0 Credential

1. Left menu → APIs & Services → Credentials → Create Credentials → OAuth client ID
2. Application type: Web application
3. Name: ai12z Portal
4. Under Authorized redirect URIs — add the portal integration page URL (see Part 2 for the correct format)
5. Click Create and copy the client_id and client_secret

The client_id and client_secret belong to ai12z's shared OAuth app. Every organization that connects GA4 uses this same OAuth application but authenticates with their own Google account and grants access to their own GA4 property.

---

Part 2: Connect GA4 in ai12z

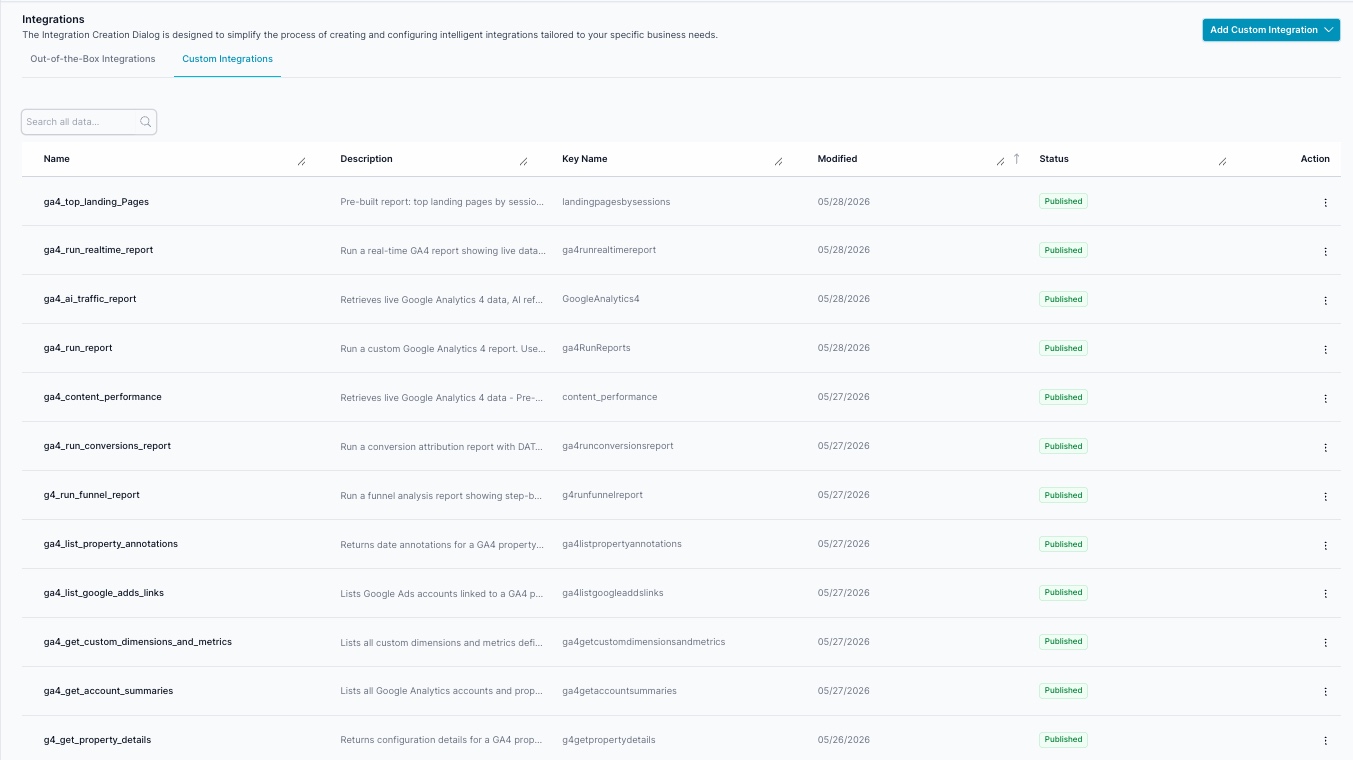

The GA4 integration is made up of 12 individual integrations — one per tool. Each is created separately in the portal under Custom Integrations.

The 12 GA4 Integration Tools

Integration Name	Description
ga4_run_report	Run any GA4 report — traffic, sessions, users, conversions, landing pages. Supports filters, ordering, and pagination.
ga4_run_realtime_report	Live data from the last 30 minutes — active users, current page activity, live traffic sources.
ga4_run_funnel_report	Step-by-step funnel analysis with drop-off rates.
ga4_run_conversions_report	Conversion attribution report — ROAS, ad spend, revenue by channel.
ga4_ai_traffic_report	AI referral traffic by source (ChatGPT, Perplexity, Gemini, Claude, Copilot) with month-over-month trend.
ga4_top_landing_Pages	Top landing pages by sessions, optionally filtered by traffic source.
ga4_content_performance	Pageviews, engagement time, and bounce rate per URL — identifies high-traffic, low-engagement pages.
ga4_get_account_summaries	Lists all GA4 accounts and properties the authorized user has access to. Run this first to find your property ID.
ga4_get_property_details	Returns configuration for a GA4 property: timezone, currency, data retention period, creation date.
ga4_get_custom_dimensions_and_metrics	Lists all custom dimensions and metrics for a property.
ga4_list_property_annotations	Returns date annotations (campaign launches, outages, site changes) for explaining traffic spikes or drops.
ga4_list_google_adds_links	Lists Google Ads accounts linked to a GA4 property.

---

Creating Each Integration

Repeat the following steps for each of the 12 tools.

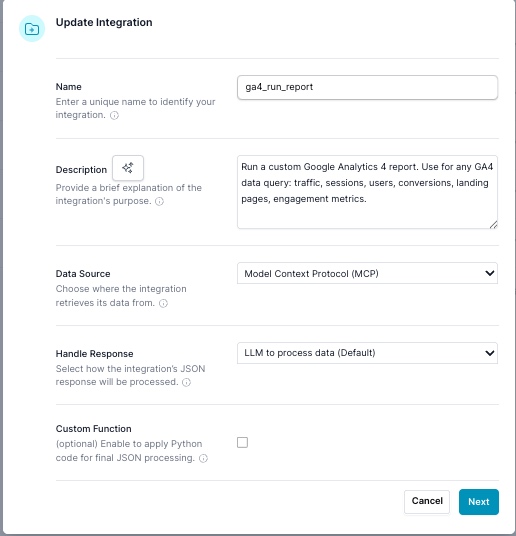

Step 1: Create the Integration Properties

Click Add Custom Integration and fill in the properties:

Field	Value
Name	The tool name (e.g. ga4_run_report)
Description	A brief description of what this tool does
Data Source	Model Context Protocol (MCP)
Handle Response	LLM to process data (Default)

Click Next.

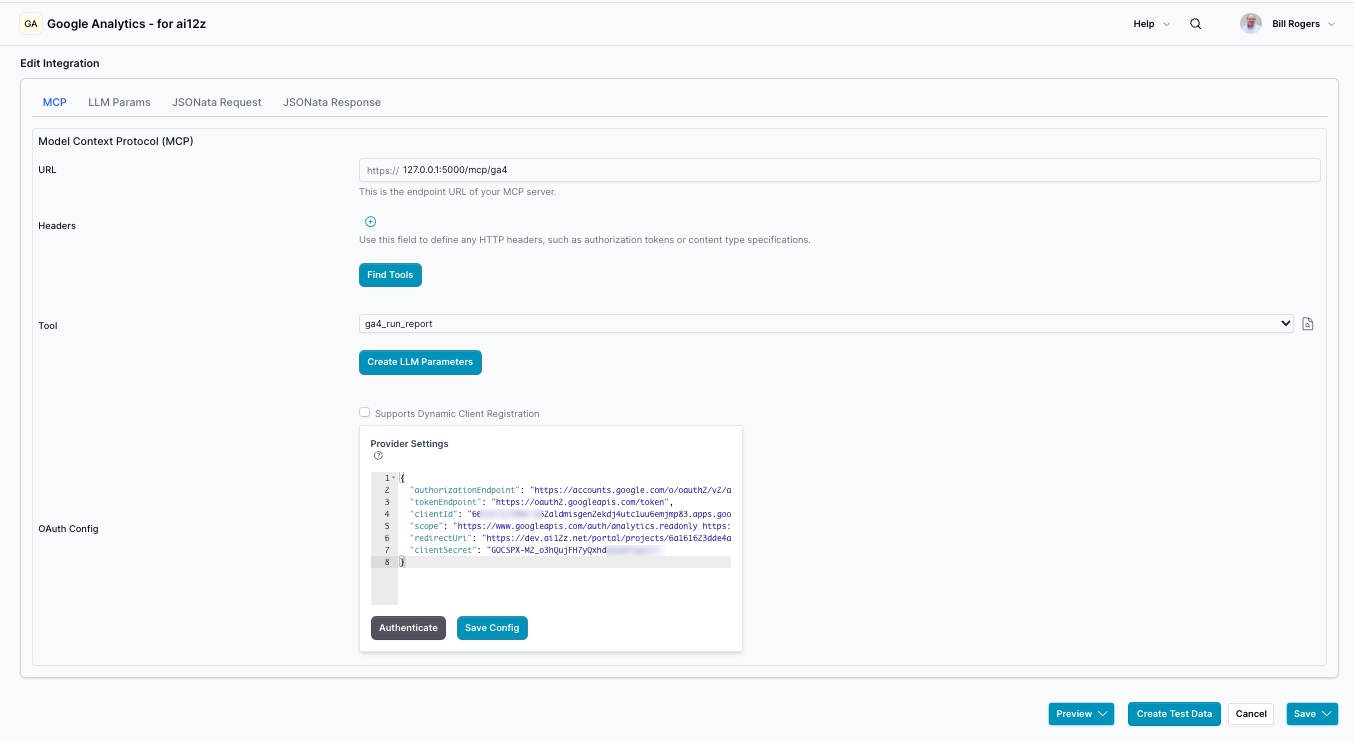

Step 2: Configure the MCP Tab

• URL: https://127.0.0.1:5000/mcp/ga4

The MCP endpoint is an internal server — it is not accessible from outside the ai12z server.

• Click Find Tools to load the available GA4 tools from the server.
• Select the matching tool from the Tool dropdown.
• Click Create LLM Parameters — the portal automatically populates all required parameters for that tool.

Step 3: Verify LLM Parameters

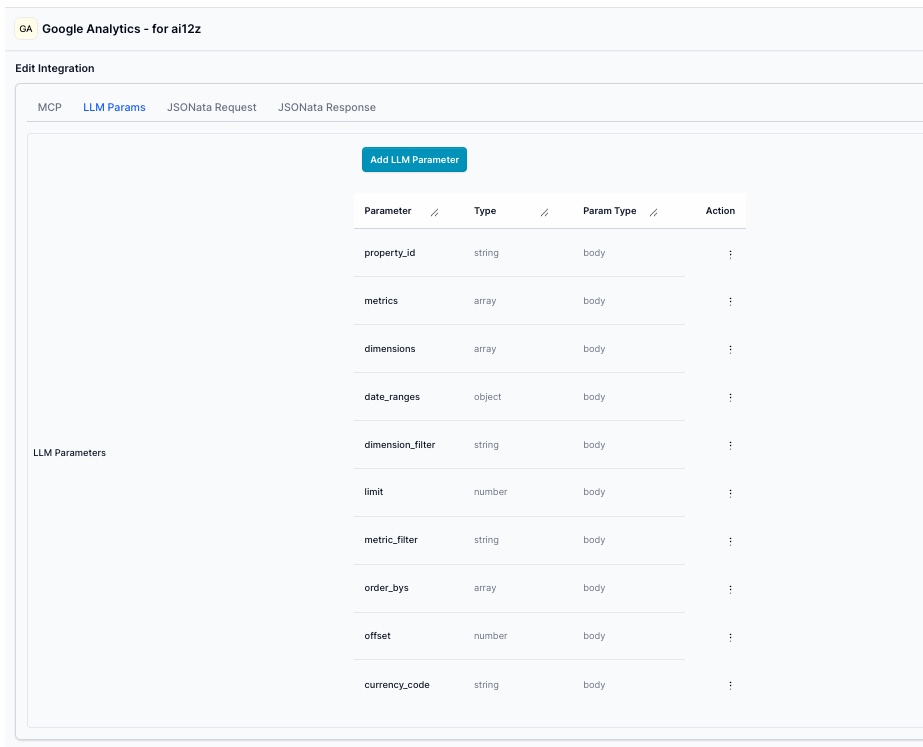

Click the LLM Params tab to confirm the parameters were created correctly.

For ga4_run_report, the auto-generated parameters are:

Parameter	Type	Param Type
property_id	string	body
metrics	array	body
dimensions	array	body
date_ranges	object	body
dimension_filter	string	body
limit	number	body
metric_filter	string	body
order_bys	array	body
offset	number	body
currency_code	string	body

Other tools will have their own parameter sets created automatically.

Step 4: Configure OAuth (first integration only)

In the MCP tab, scroll down to the OAuth Config (Provider Settings) section and paste the following JSON:

{
  "authorizationEndpoint": "https://accounts.google.com/o/oauth2/v2/auth",
  "tokenEndpoint": "https://oauth2.googleapis.com/token",
  "clientId": "OAUTH_CLIENT_ID",
  "clientSecret": "OAUTH_CLIENT_SECRET",
  "scope": "https://www.googleapis.com/auth/analytics.readonly https://www.googleapis.com/auth/analytics.edit",
  "redirectUri": "https://app.ai12z.net/portal/projects/[PROJECT_ID]/agents/[AGENT_ID]"
}

Setting the redirectUri:

The redirectUri must be the exact portal page URL for this integration — copy it from your browser's address bar after saving. It should look like:

https://app.ai12z.net/portal/projects/abc123/agents/xyz789

• No trailing slash
• No query parameters
• This same URL must be registered as an Authorized redirect URI in Google Cloud Console (Step 1d)

The portal uses this URL for both the authorization redirect and the token exchange. You must be on this exact page when you click Authenticate.

Click Save Config, then click Authenticate. You will be redirected to Google to authorize access to your GA4 property. Once authorized, ai12z injects the access token into every MCP call automatically.

---

Available GA4 Data

Once connected, the GEO Bot has access to the following data from your GA4 property.

AI Referral Traffic

GA4 natively tracks AI platforms as referral sources. The bot can filter and report on traffic from:

• chatgpt.com
• perplexity.ai
• gemini.google.com
• claude.ai
• copilot.microsoft.com

Traffic & Users

• Sessions, users, new users by date range
• Traffic source breakdown (organic, direct, referral, paid, social, email)
• Channel grouping
• Landing page by traffic source

Content Performance

• Pageviews per URL
• Average engagement time per page
• Bounce rate and engagement rate

Conversions & Revenue

• Conversion events (any event marked as a conversion in GA4)
• Revenue by page, by traffic source
• Funnel analysis with drop-off rates

Real-Time Data

• Active users right now
• Pages being viewed at this moment
• Live traffic by source (last 30 minutes)

Property & Account Info

• All GA4 accounts and properties the authorized Google account can access
• Property configuration (timezone, currency, data retention)
• Custom dimensions and metrics
• Date annotations (campaign launches, site changes, outages)
• Linked Google Ads accounts

---

Example Questions

AI Traffic

How much of my traffic is coming from AI sources like ChatGPT and Perplexity?
Which AI platform sends me the most traffic?
Is my AI referral traffic growing or shrinking compared to last month?
Which pages get the most traffic from AI referrals?

GEO + Analytics Cross-Reference

Which pages have high GEO scores but low traffic?
Did traffic to my pricing page increase after I updated it?
Which pages are getting organic traffic but not holding user attention?
What should I publish next based on my GEO content gaps and current traffic data?

Content Performance

Which pages have the highest traffic but the lowest engagement time?
Which blog posts drove the most traffic last quarter?
Which pages are users bouncing from the fastest?

Conversions

Which pages are getting traffic but not converting?
What are my top converting traffic sources?
What is my conversion rate by channel?

General Traffic

How many users did I have last month?
What are my top traffic sources this month?
How is my organic search traffic trending over the last 90 days?
What is my traffic breakdown by device — desktop vs. mobile?

---

Known Limitations

Limitation	Detail
Historical data	GA4 data is only available from when the GA4 property was created. Universal Analytics data is not accessible.
Sampled data	Very large date ranges or high-cardinality dimension combinations may return sampled results. GA4 360 reduces sampling.
Search Console	Requires the client to have linked Google Search Console to their GA4 property.
Real-time scope	The real-time endpoint only covers the last 30 minutes and supports limited dimensions.
Conversion events	Must be configured in GA4 before they appear in reports.
OAuth revocation	If access is revoked via Google Account settings, the portal will surface a "Reconnect" prompt.
Property access loss	If the Google account used to authorize loses access to the GA4 property, the portal will prompt re-authorization.

---
